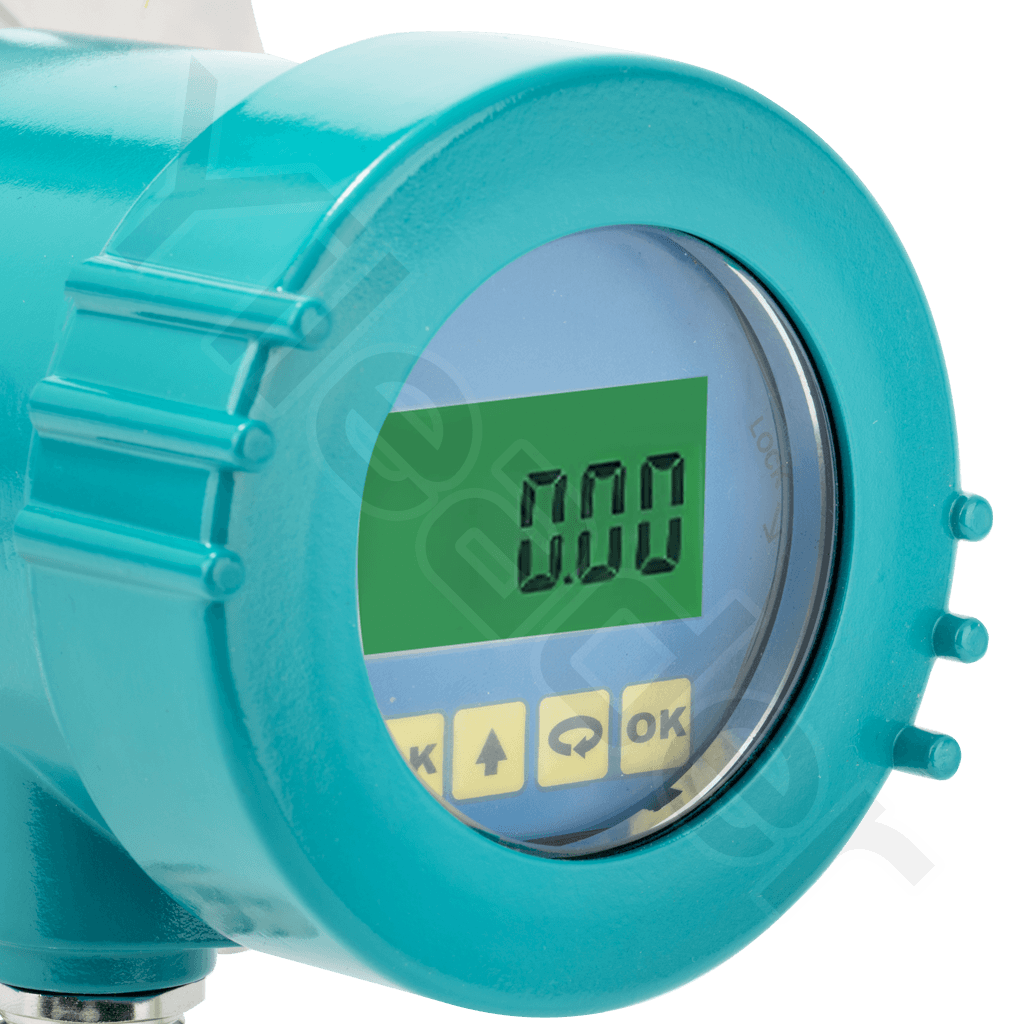

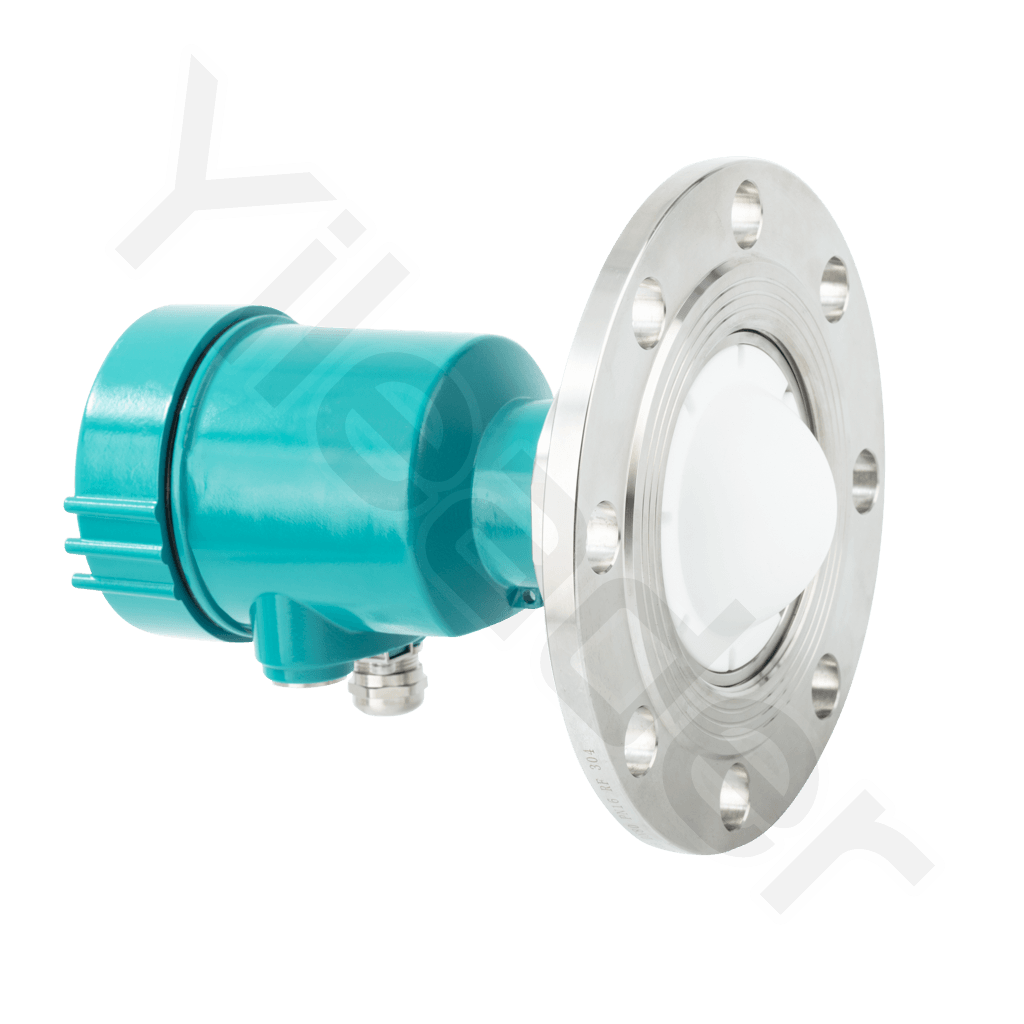

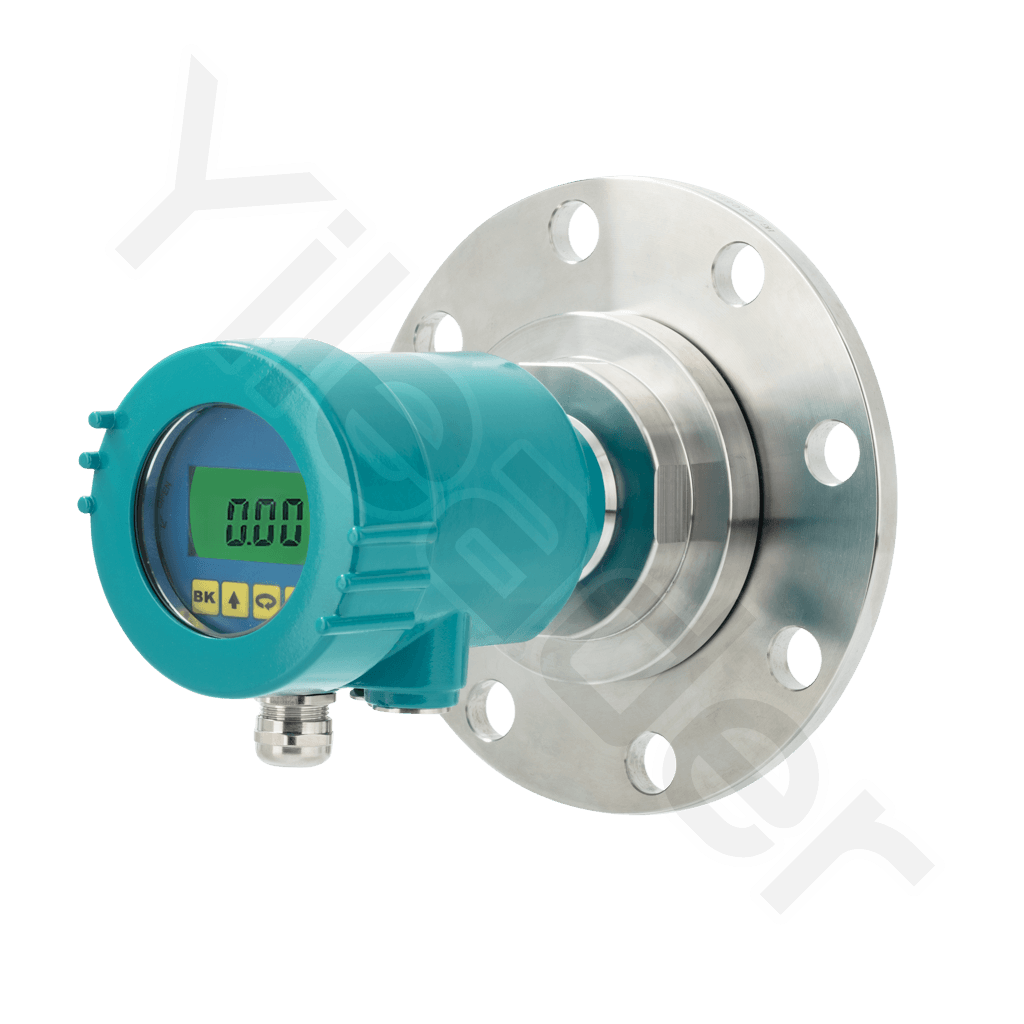

YK-RLGJ

80 GHz FMCW Radar Level Meter

The operating principle of the FMCW (Frequency Modulated Continuous Wave) radar level meter is that the radar emits electromagnetic waves from the top of the tank. After the waves are reflected by the medium surface, they are received by the radar. The frequency difference (δf) between the transmitted and received signals is proportional to the distance R to the medium surface: R=C×δf/(2K) Where C is the speed of light and K is the frequency modulation slope. Since C and K are known, the frequency difference δf can be used to calculate the distance R from the radar to the material surface. The level height is then obtained by subtracting this distance from the total tank height.

Buy

technology parameter

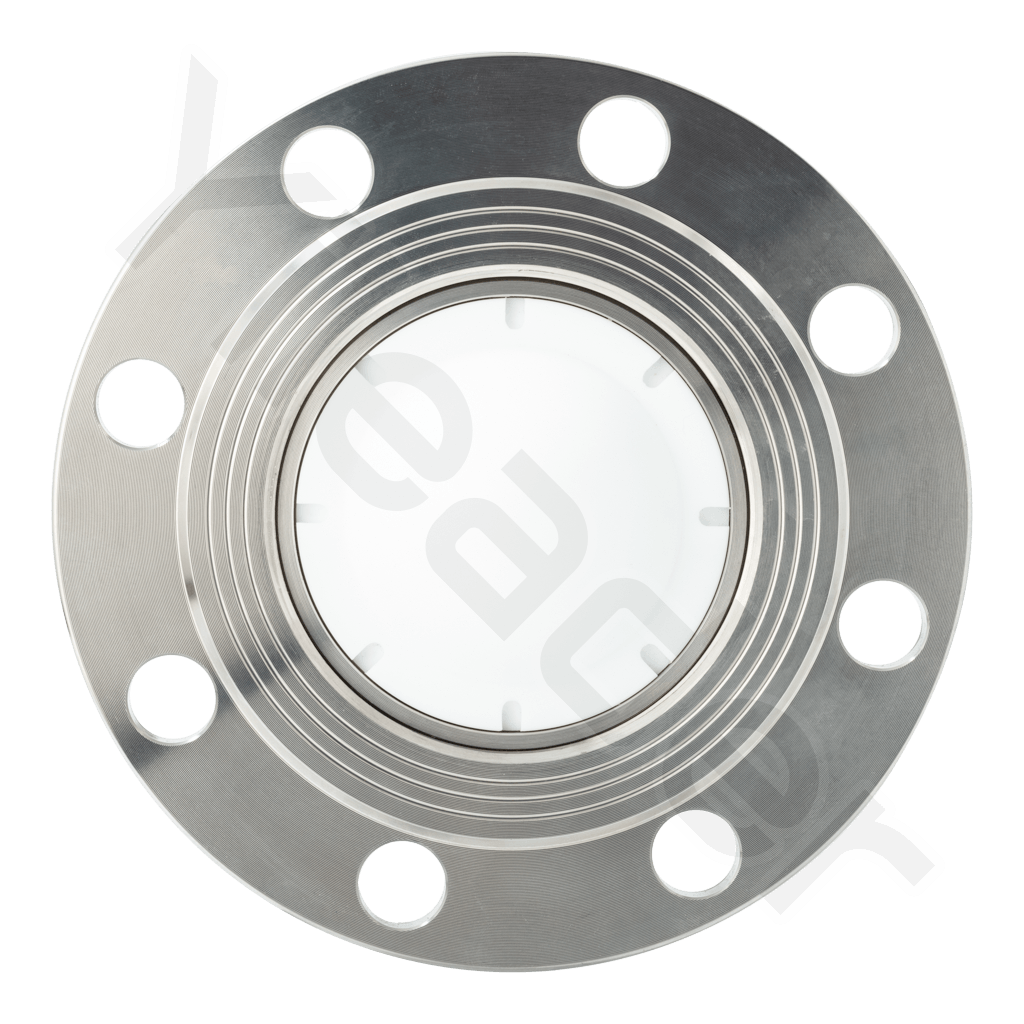

Structure Type	Integrated Type, Split Type	Element Form	Water-drop Lens Antenna
Housing Material	SUS304, SUS316, Aluminum Alloy	Beam Angle	3 degrees
Transmission Frequency	80GHz	Ambient Temperature	-25 ～ 60℃
Process Temperature	-40 ～ 250℃	Operating Pressure	0 ～4.0 MPa (customizable)
Accuracy	±1mm	Electrical Connection	M20×1.5 (customizable)
Output Signal	4～20mA, RS485	Ingress Protection Rating	IP65, IP66
Certifications	Intrinsic Safety, Explosion-proof	Power Supply	220VAC, 24VDC

Selection

Measurement Task
Operating Temperature

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Pressure Rating

A:0–1.6MPa; B:0–2.5MPa; C:0–4.0MPa; D:0–6.3MPa; E:0–10MPa;
Output Signal

A:4–20mA; B:Discrete signal; C:No Output;
Power Supply

A:24VDC; B:220VAC; C:Non-powered;
Process Connection Size

A:DN20; B:DN25; C:DN32; D:DN40; E:DN50; F:DN65; G:DN80; H:DN100; J:DN125; K:DN150; L:DN200; M:G1/2 thread; S:1/2 NPT thread; T:G1 thread; Y:G1½ thread; Z:G1¼ thread; X:Other;
Measuring Range

A:0-1000mm; B:0-5000mm; C:0-10000mm; D:0–15000mm; E:0-20000mm; F:0-30000mm; G:0-40000mm; H:0-50000mm; I:Other;
Corrosive Service

A:Yes; B:No;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsically Safe;
