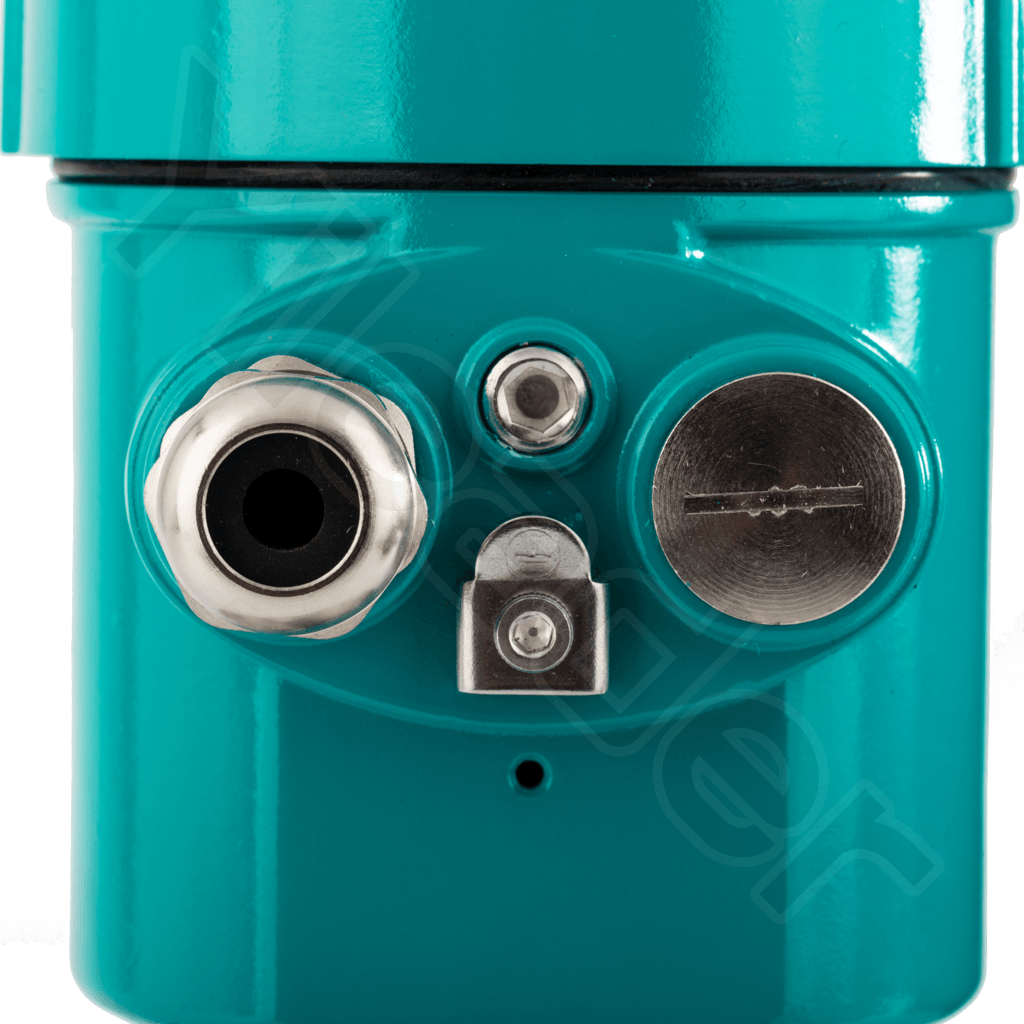

YK-A6016

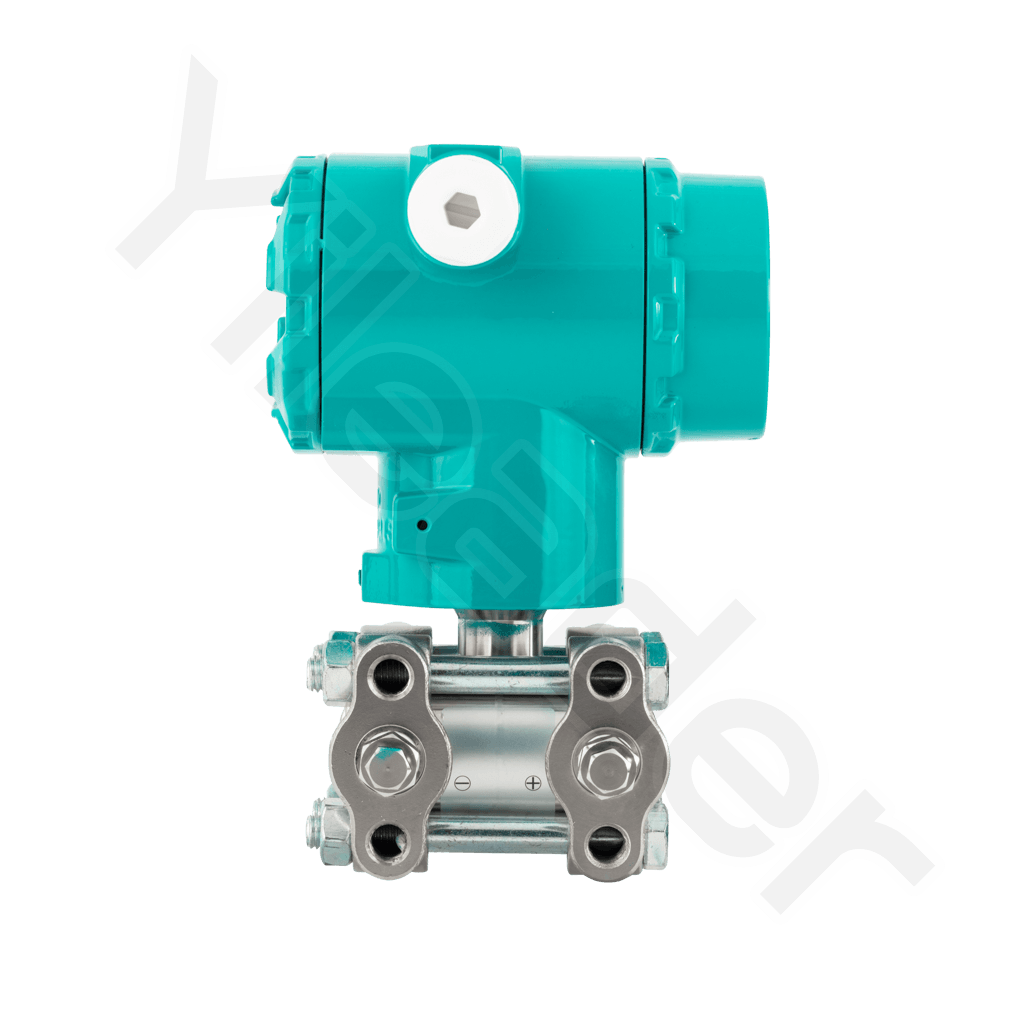

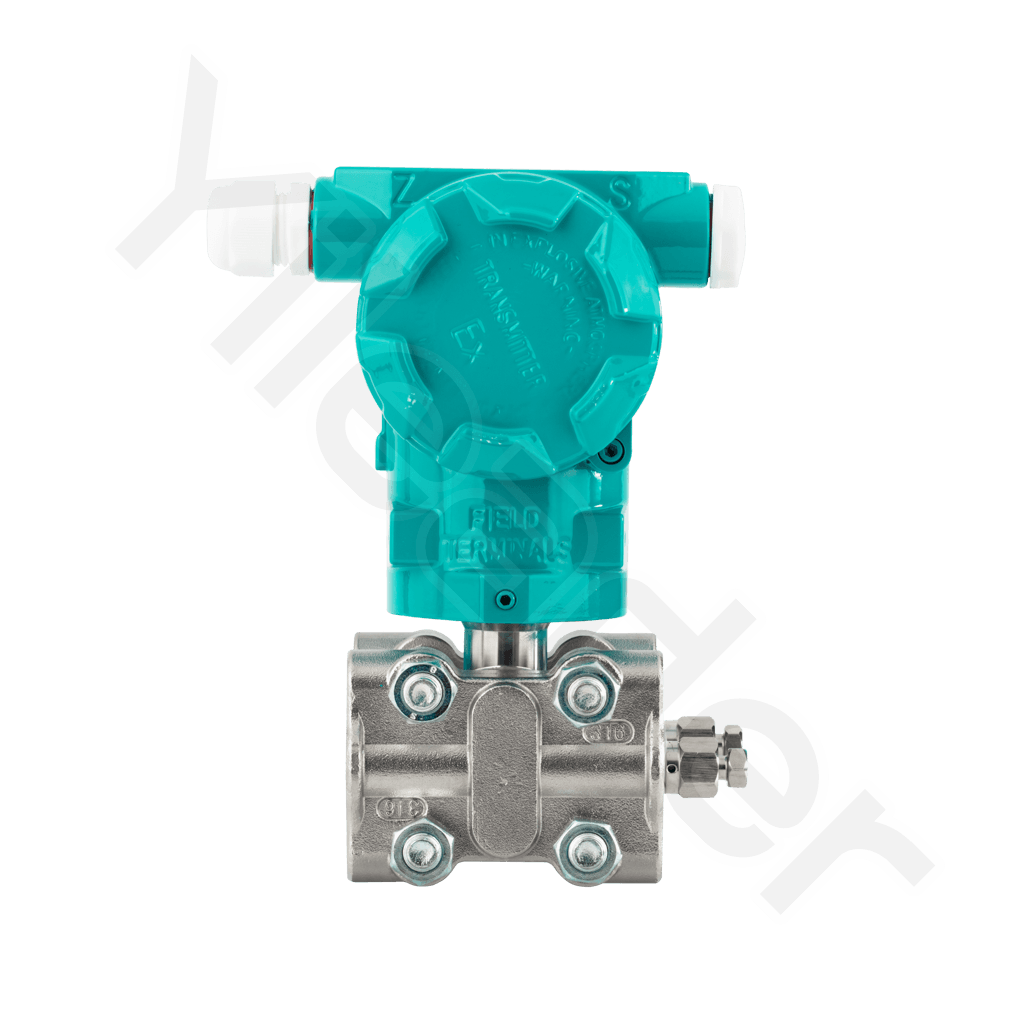

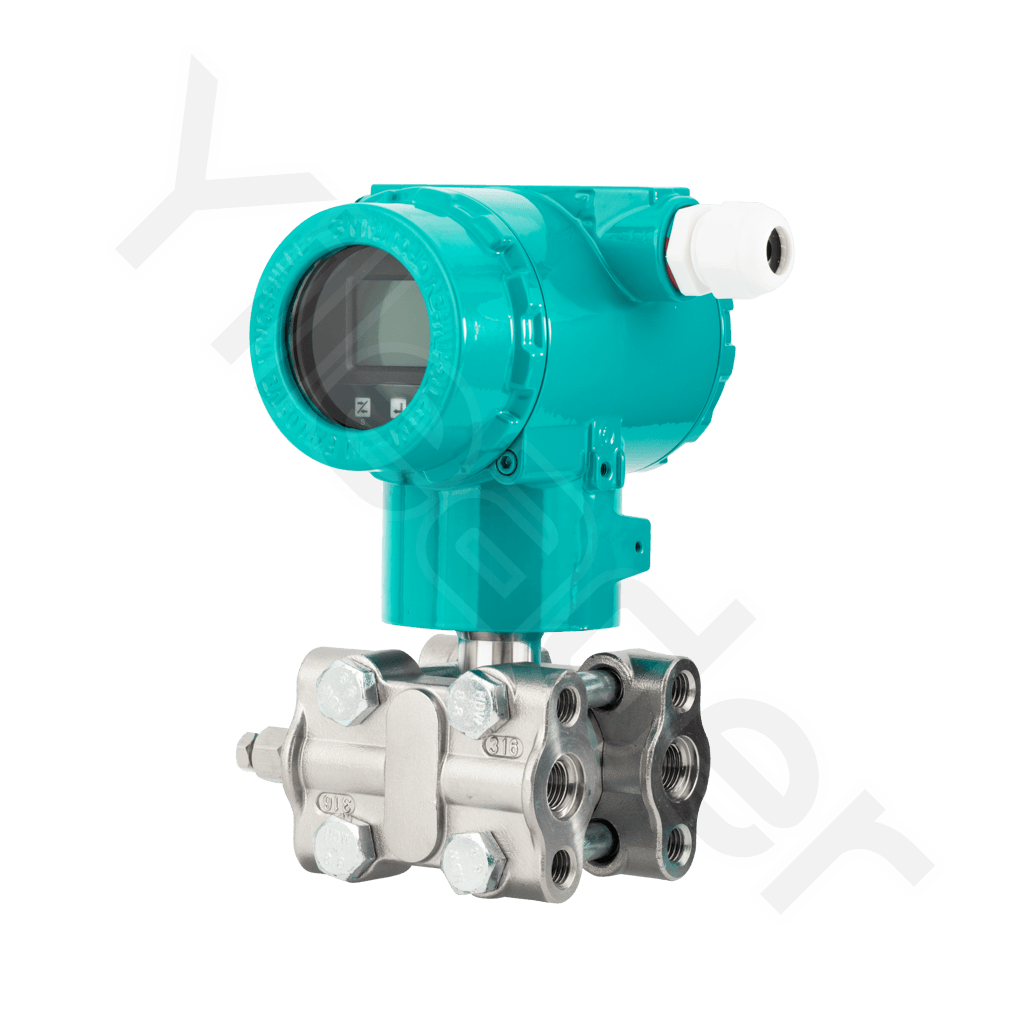

High Static Pressure DP Transmitter

The YK-A6016 High Static Pressure Differential Pressure Transmitter is capable of measuring differential pressure under a working pressure of up to 32 MPa. With 32 MPa static pressure and overpressure protection, it ensures reliable performance in high static pressure applications. Measured media: liquids, gases, and steam.-static-pressure differential pressure transmitters employ capacitive sensing technology to accurately measure level, flow, or pressure of liquids, gases, or steam under high-line-pressure conditions. Process pressure is transmitted via isolation diaphragms and fill fluid to both sides of a central measuring diaphragm, forming a differential pressure that deflects the diaphragm proportionally. This deflection changes the capacitance between the diaphragm and fixed electrodes; the resulting capacitance difference is converted by onboard electronics into a linear 4–20 mA DC output, enabling precise differential measurements even when superimposed on very high static pressures.

Buy

technology parameter

Structure Type	Integrated	Installation Method	Threaded, Bracket
Housing Material	SUS304, SUS316, Cast Aluminum Alloy	Connector Material	SCM435, SUS630, SUH660
Diaphragm Material	316L, Hastelloy C-276, Tantalum	Ambient Temperature	-25 ～ 70℃
Process Temperature	-25 ～ 100℃	Pressure Range	1–100 kPa, 5–500 kPa
Accuracy	±0.075%	Electrical Connection	M20×1.5 (customizable)
Output Signal	4–20 mA, HART Protocol, RS485	Protection Rating	IP65, IP66
Certifications	Intrinsic Safety, Explosion-proof	Power Supply Voltage	24 VDC

Selection

Measurement Task
Temperature Range

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Span

A:-10–1kPa; B:0–5kPa; C:0–10kPa; D:0–50kPa; E:0–100kPa; F:0–1.6MPa; G:0–2.5MPa; H:0–3.2MPa; J:0–10MPa; Z:Customized;
Wetted Parts Material

A:316L; B:Hastelloy; C:Tantalum (TAN);
Output Signal

A:4–20mA;
Process Connection Size

A:DN20; B:DN25; C:DN32; D:DN40; E:DN50; F:DN65; G:DN80; H:DN100; V:M20×1.5; P:1/2NPT; S:G1/2; Z:Other;
Accuracy Class

A:0.075%F.S; B:0.1%F.S; C:0.25%F.S; D:0.5%F.S;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsically Safe;
Electrical Conduit Entry Size

A:M20×1.5; B:G1/2 NPT internal thread; C:1/2 NPT internal thread; D:Other;
