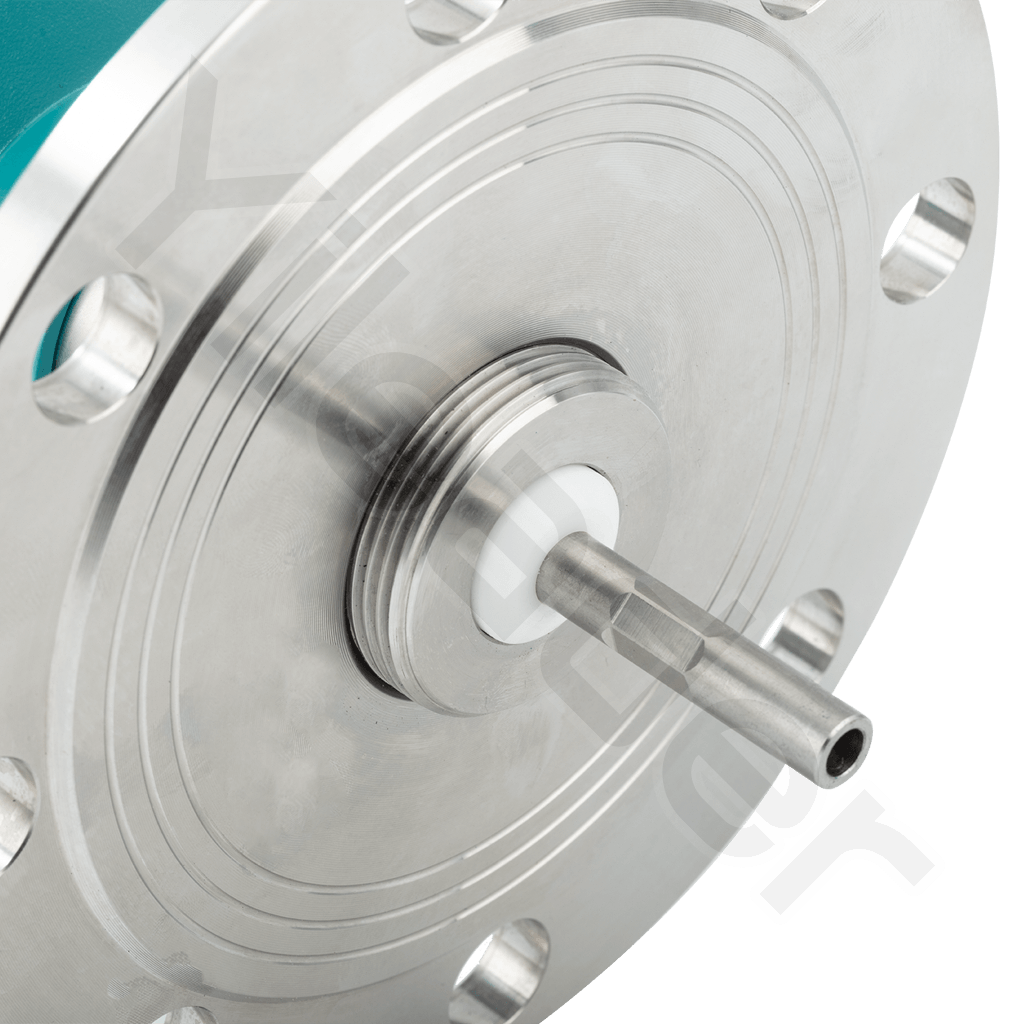

YK-RLGW

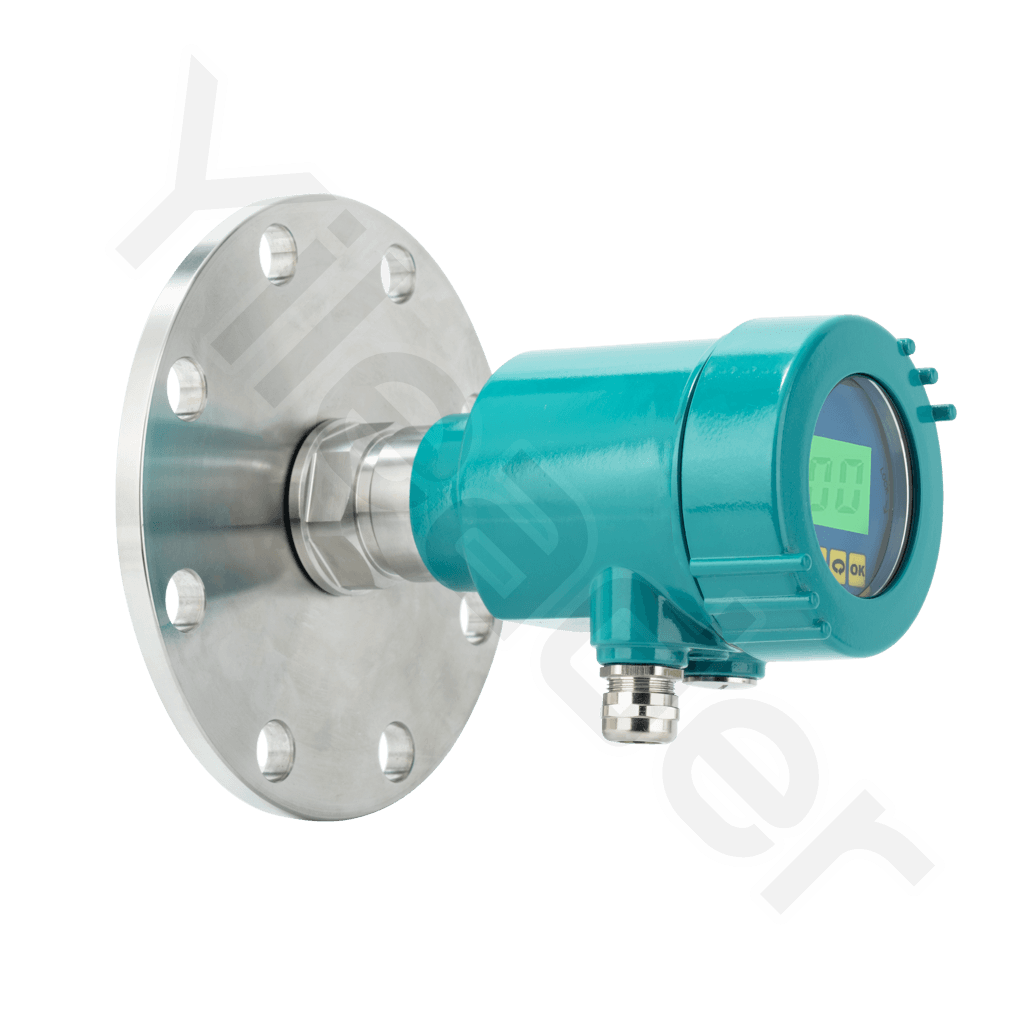

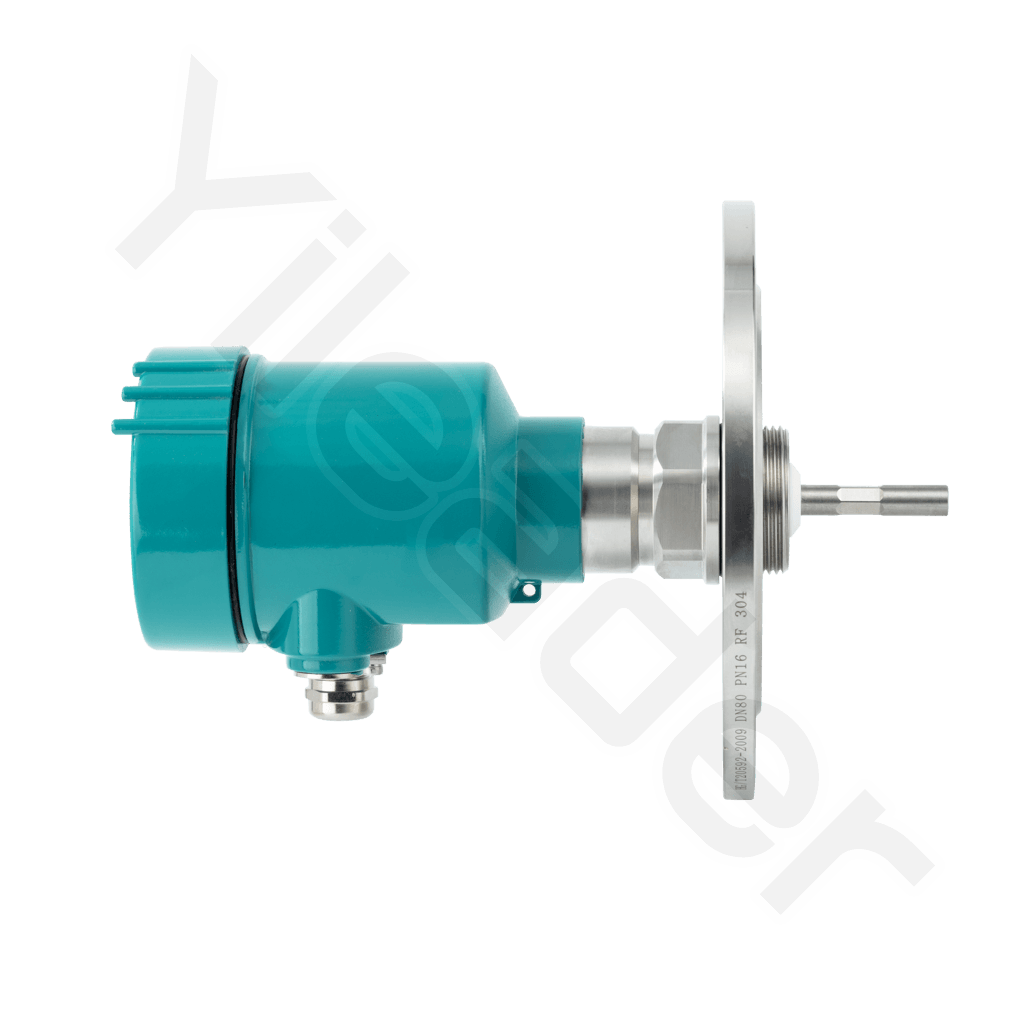

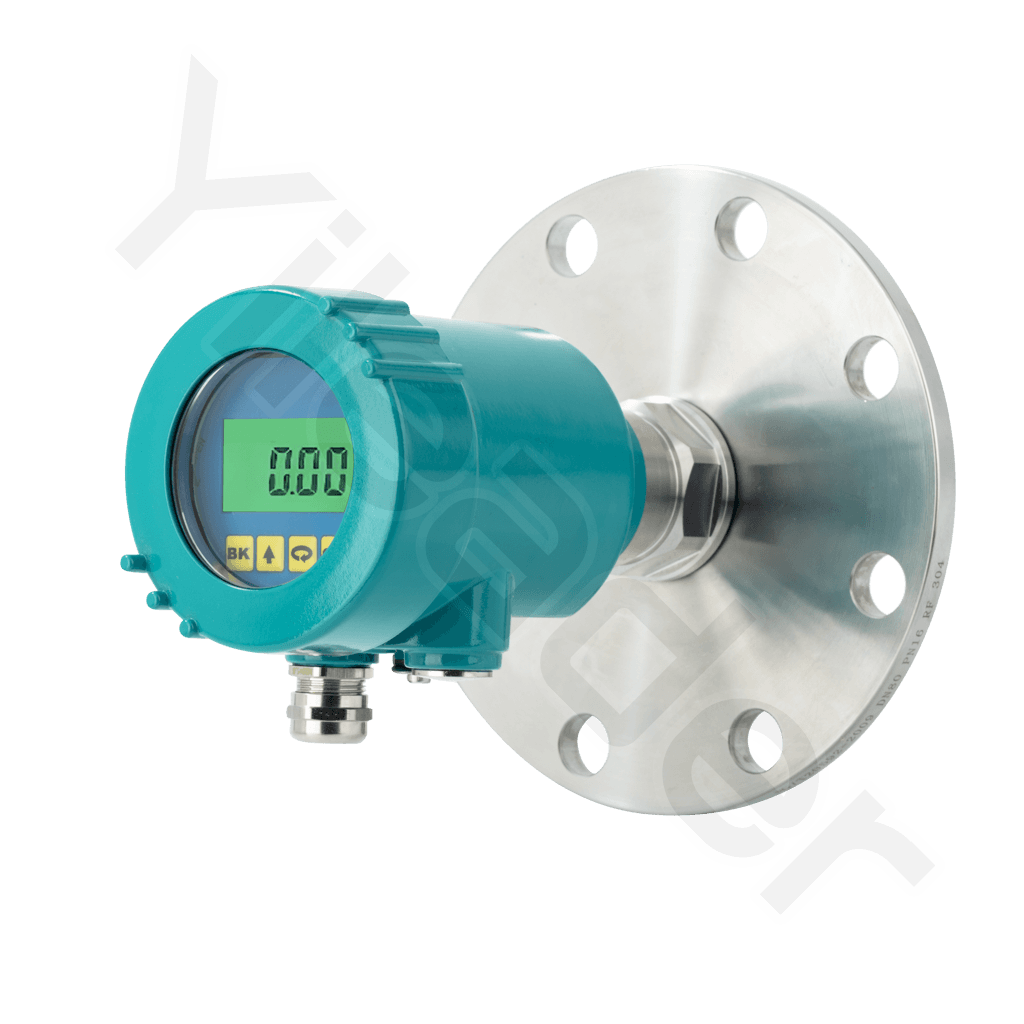

Guided Wave Radar Level Meter

Guided wave radar level meters, commonly used in the chemical industry, operate on the principle of Time Domain Reflectometry (TDR): an electromagnetic pulse travels at the speed of light along a probe (cable or rod), and when it reaches the surface of the measured medium, part of the pulse is reflected back as an echo; the distance between the transmitter and the medium surface is proportional to the pulse’s round-trip travel time, from which the liquid level height is precisely calculated.

Buy

technology parameter

Structure Form	Wire rope type, rod type	Connection Method	Flange
Shell Material	SUS304, SUS316, Aluminum Alloy	Measuring Range	0～20 meters
Contact (Material) Material	304, 316L	Ambient Temperature	-20 ～ 60℃
Process Temperature	-20 ～ 380℃	Applicable Pressure	1.0～60Bar（can be agreed upon）
Accuracy	±0.1%	Electrical Connection	M20×1.5（can be agreed upon）
Output Signal	4～20mA, HART Protocol, RS485	Protection Rating	IP65, IP66, IP67
Certifications	Intrinsic Safety, Explosion-proof	Power Supply Voltage	220VAC, 24VDC

Selection

Measurement Task
Operating Temperature

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Pressure Rating

A:0–1.6MPa; B:0–2.5MPa; C:0–4.0MPa; D:0–6.3MPa; E:0–10MPa;
Output Signal

A:4–20mA; B:Discrete signal; C:No Output;
Power Supply

A:24VDC; B:220VAC; C:Non-powered;
Process Connection Size

A:DN20; B:DN25; C:DN32; D:DN40; E:DN50; F:DN65; G:DN80; H:DN100; J:DN125; K:DN150; L:DN200; M:G1/2 thread; S:1/2 NPT thread; T:G1 thread; Y:G1½ thread; Z:G1¼ thread; X:Other;
Measuring Range

A:0-1000mm; B:0-5000mm; C:0-10000mm; D:0–15000mm; E:0-20000mm; F:0-30000mm; G:0-40000mm; H:0-50000mm; I:Other;
Corrosive Service

A:Yes; B:No;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsically Safe;
