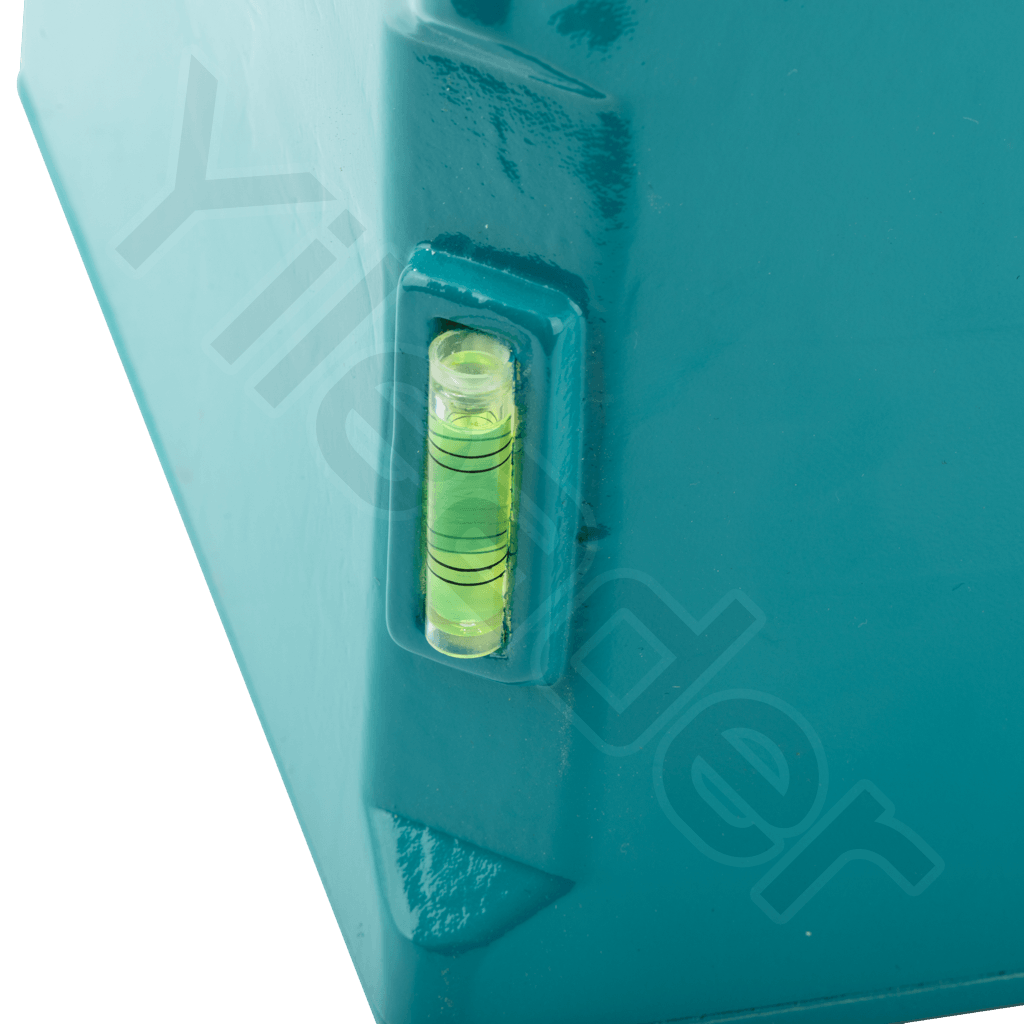

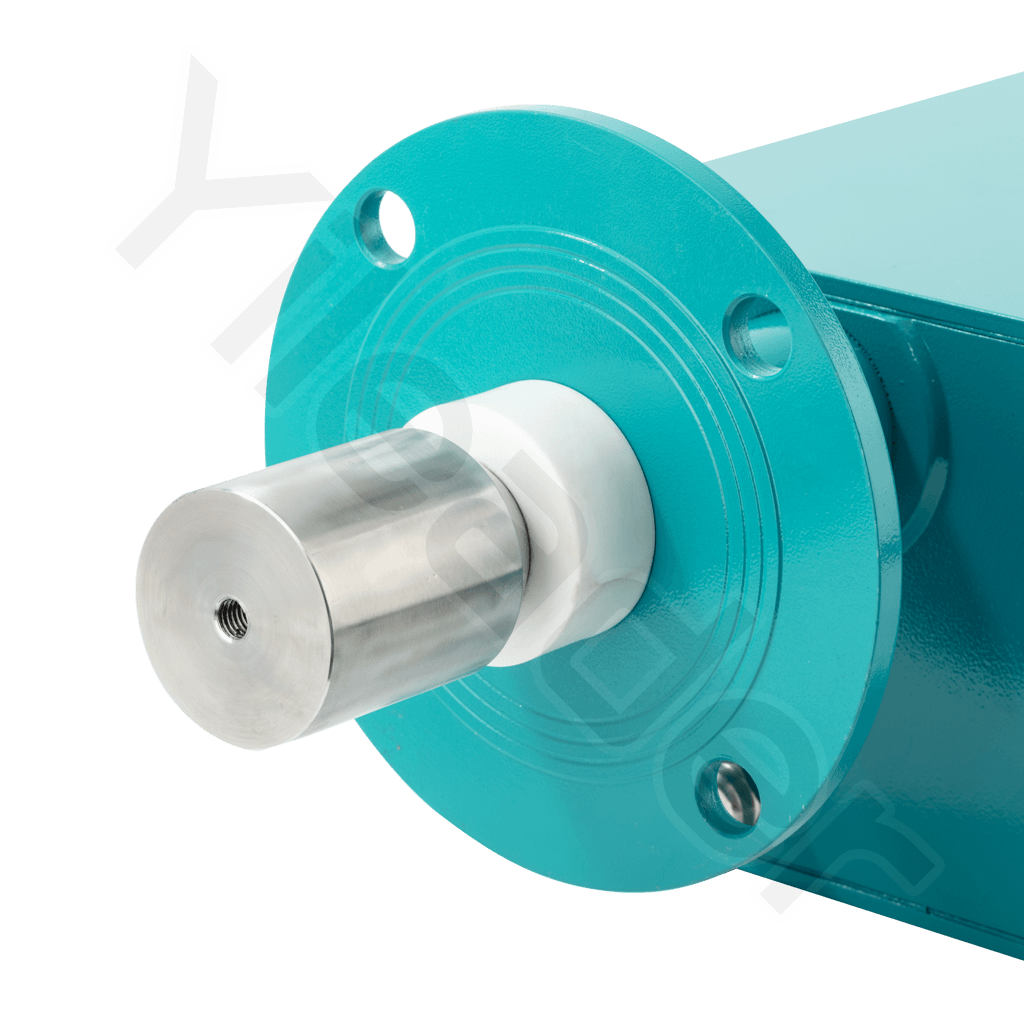

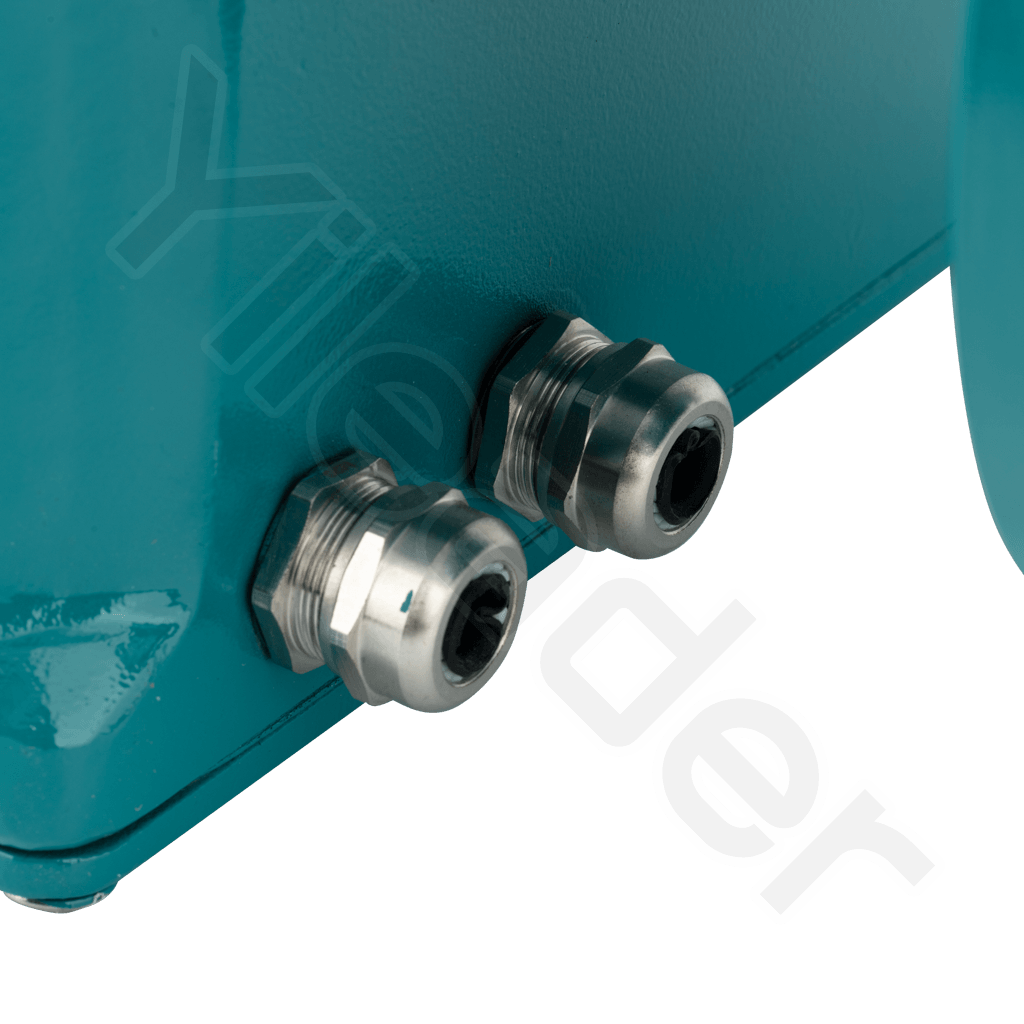

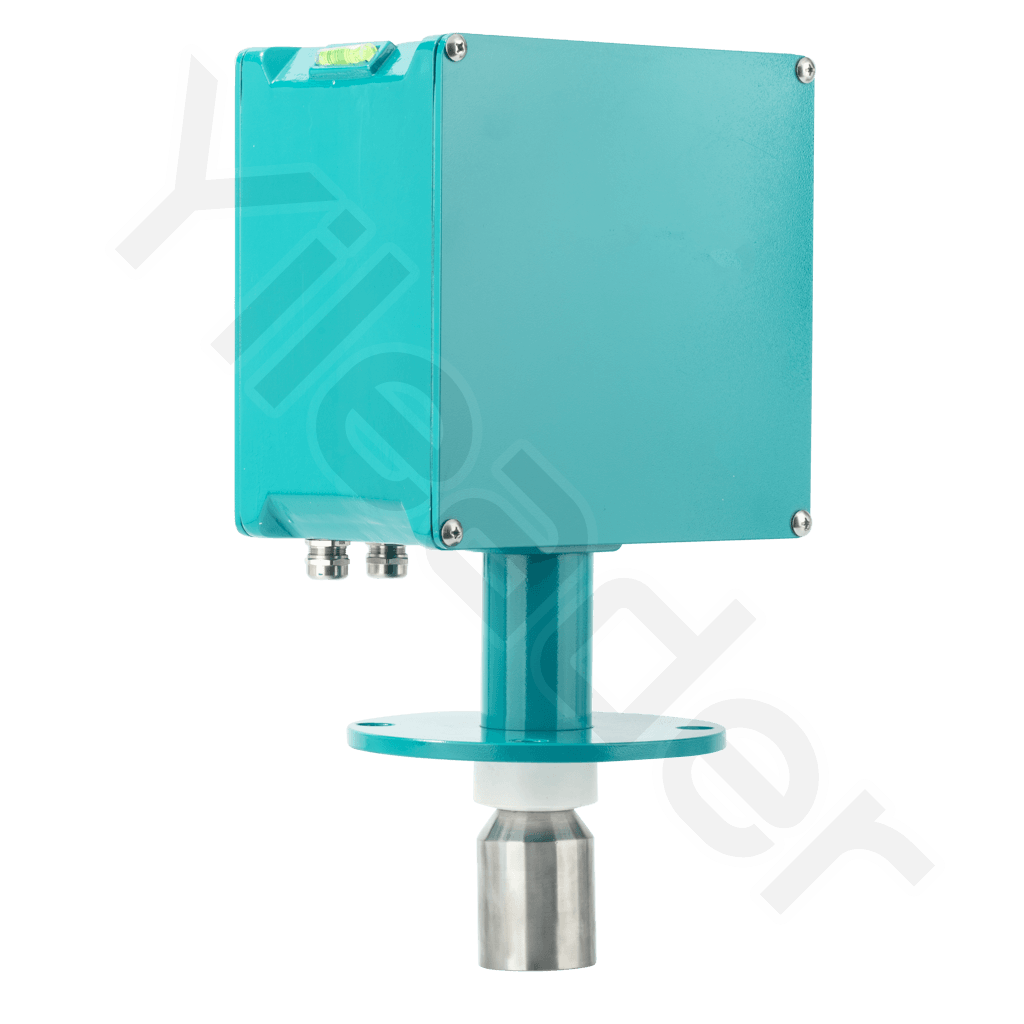

Weight-and-Cable (Plumb Bob) Level Indicator

YK-ZC

Weight-and-Cable (Plumb Bob) Level Indicator

Plumb-bob (weight-and-cable) level meters consist of a sensor and a control unit; the sensor, mounted on the silo top, lowers a weighted probe via a motor-driven stainless steel tape or wire into the vessel. The instrument automatically initiates periodic measurements: the weight descends until it contacts the material surface, then immediately retracts. The distance from the silo top to the material surface (hl) is derived from the cable payout length; subtracting hl from the user-defined total silo height (H) gives the material level (h = H – hl). Controlled by a PLC, the system offers high stability, ease of use, and communication capabilities (e.g., RS485), enabling integration into distributed control systems for centralized monitoring and management in power, metallurgy, cement, coal, chemical, and food industries.

Buy

technology parameter

Structure Form	Integrated, Split	Connection Method	Flange Type
Shell Material	Aluminum Alloy	Detection Speed	0.15m/s
Probe Material	316L	Ambient Temperature	-30～ 60℃
Process Temperature	-10 ～ 100℃	Applicable Pressure	0～1.6 MPa (can be agreed upon)
Precision	±1%	Electrical Interface	M20×1.5 (can be agreed upon)
Output Method	4～20mA, RS485, Relay	Protection Level	IP65
Certification	Intrinsic Safety, Flameproof	Power Voltage	220VAC, 24VDC

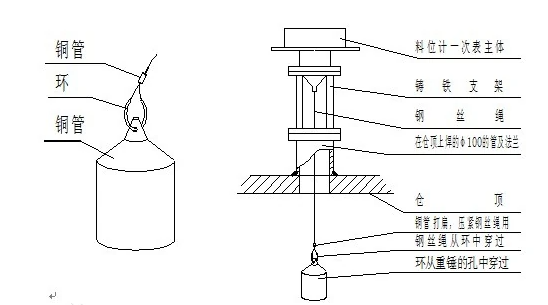

Sinker Principle Diagram

Selection

Measurement Task
Operating Temperature

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Pressure Rating

A:0–1.6MPa; B:0–2.5MPa; C:0–4.0MPa; D:0–6.3MPa; E:0–10MPa;
Output Signal

A:4–20mA; B:Discrete signal; C:No Output;
Power Supply

A:24VDC; B:220VAC; C:Non-powered;
Process Connection Size

A:DN20; B:DN25; C:DN32; D:DN40; E:DN50; F:DN65; G:DN80; H:DN100; J:DN125; K:DN150; L:DN200; M:G1/2 thread; S:1/2 NPT thread; T:G1 thread; Y:G1½ thread; Z:G1¼ thread; X:Other;
Measuring Range

A:0-1000mm; B:0-5000mm; C:0-10000mm; D:0–15000mm; E:0-20000mm; F:0-30000mm; G:0-40000mm; H:0-50000mm; I:Other;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsically Safe;
