YK-UHZC

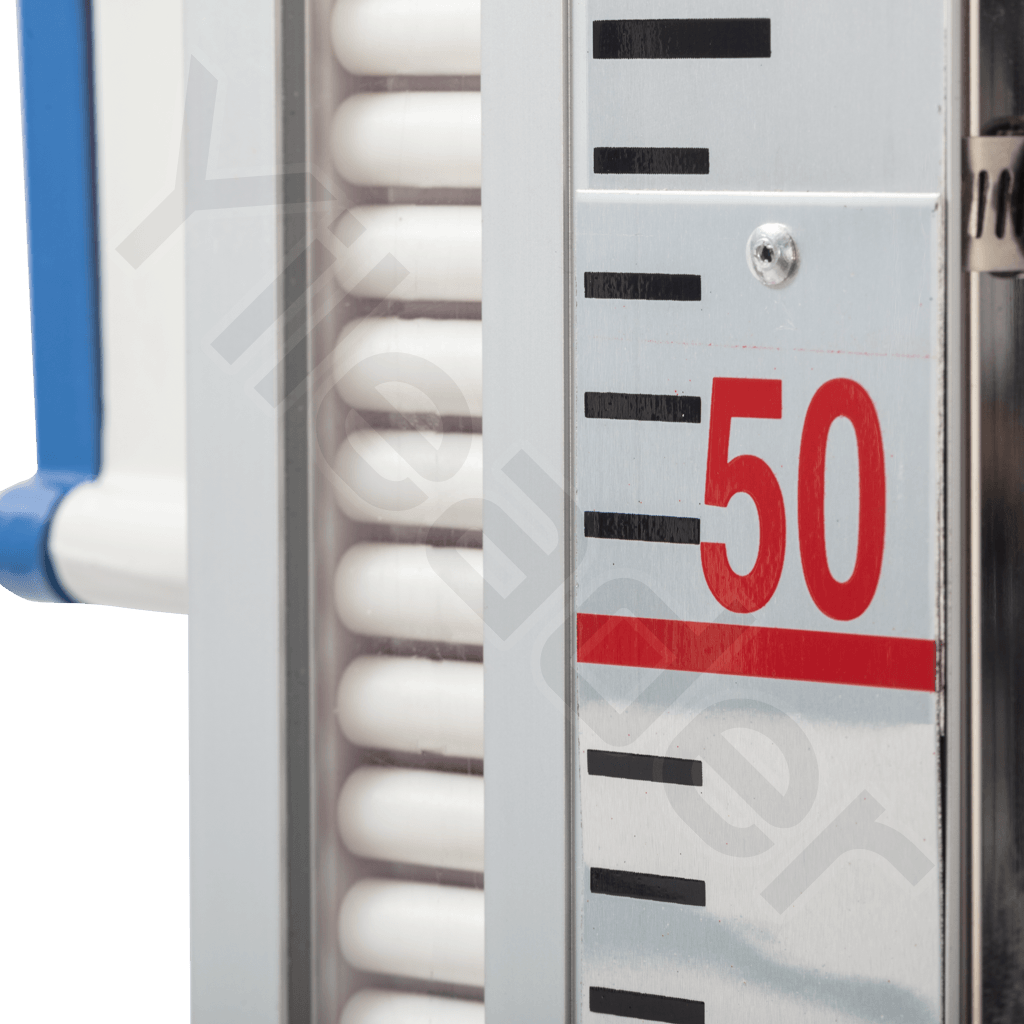

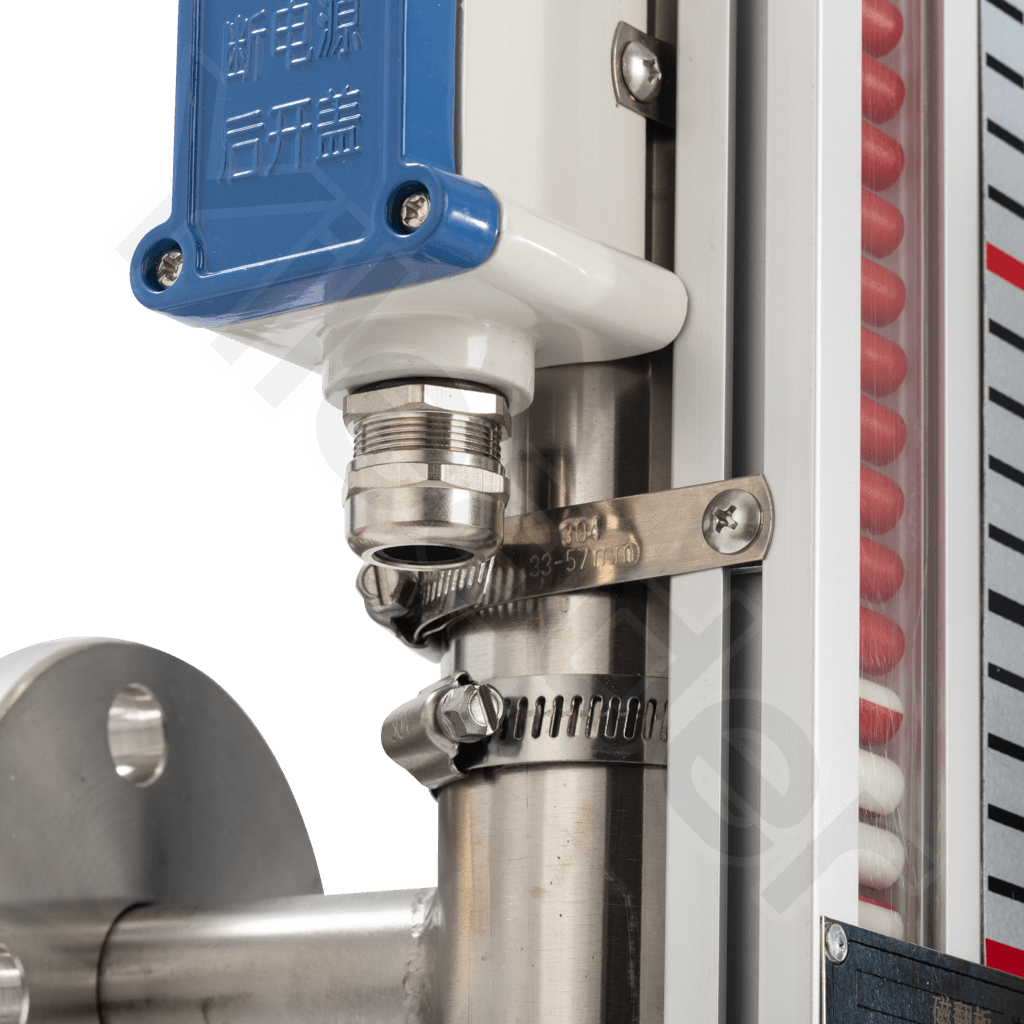

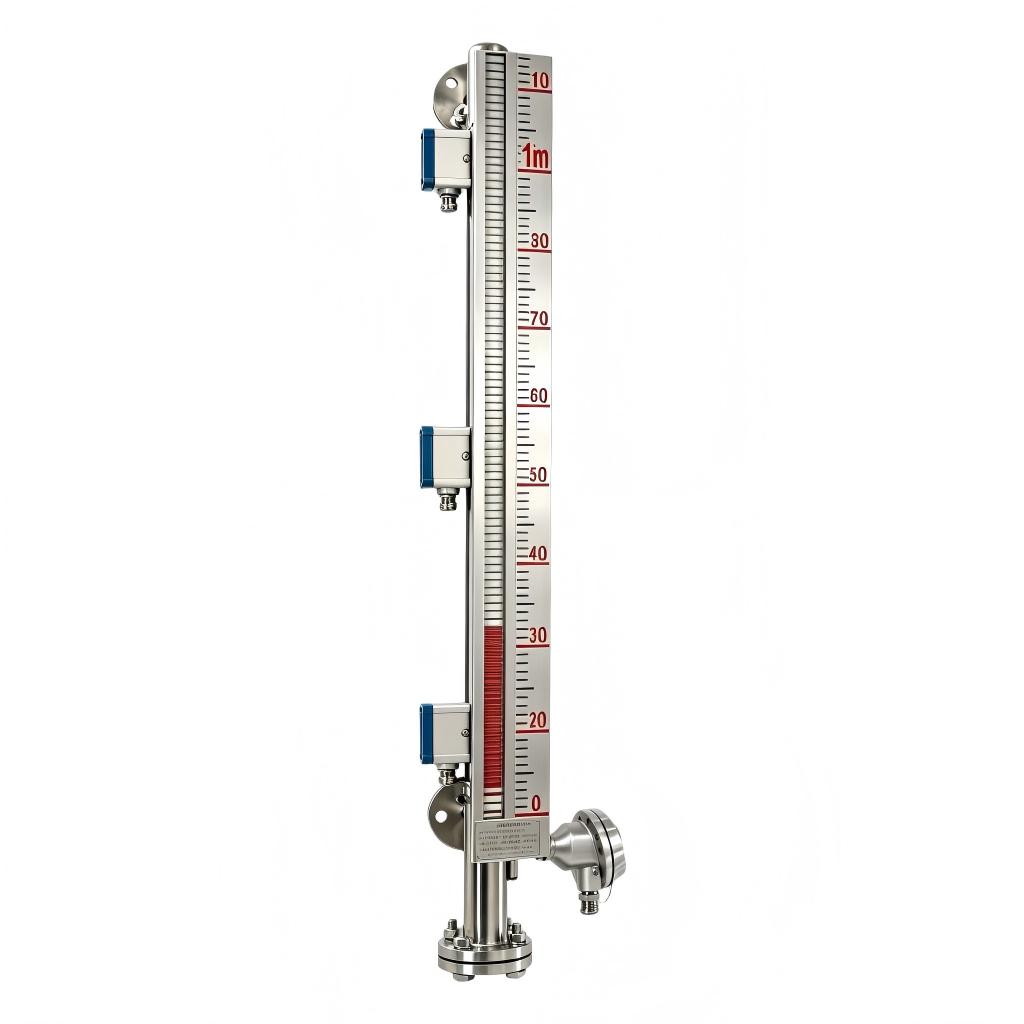

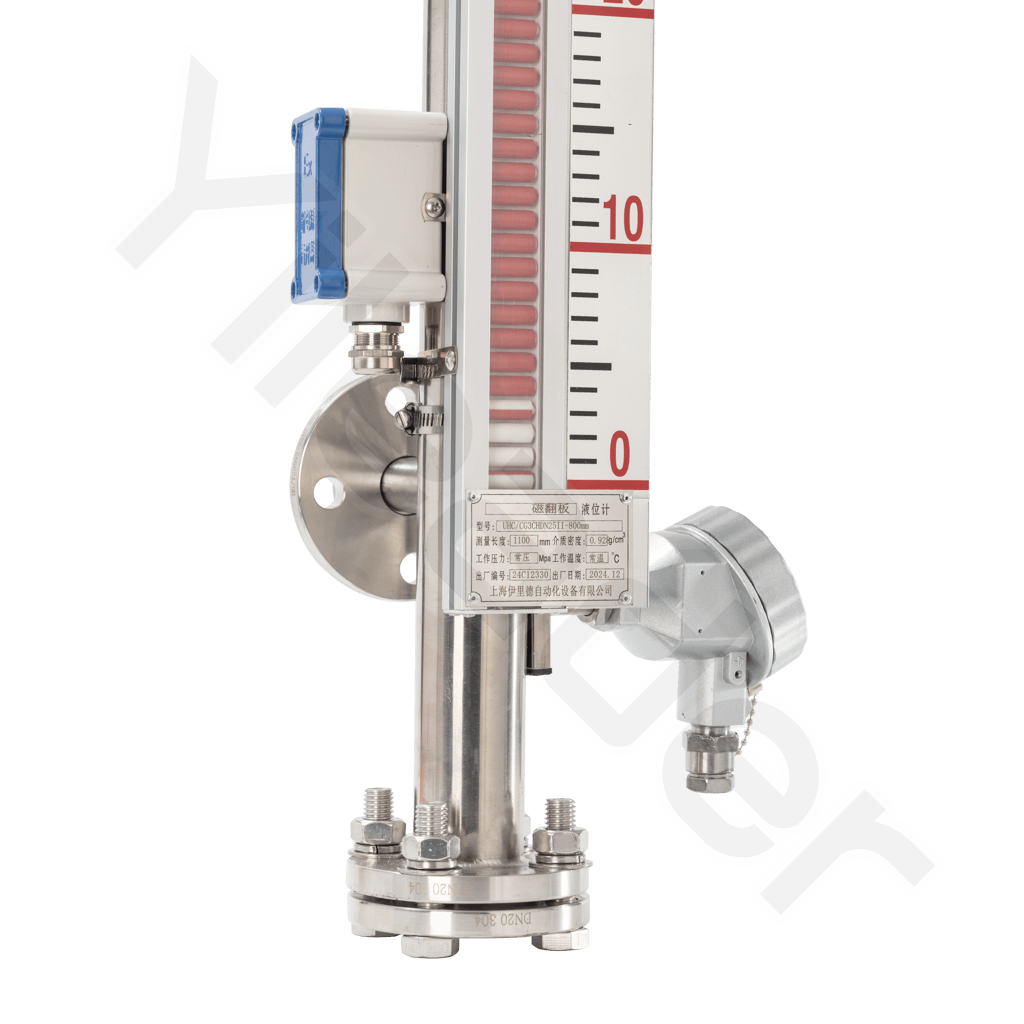

Magnetic Flap Level Gauge

Magnetic flap level indicators, also called magnetic float level meters, operate on principles of buoyancy and magnetic coupling. As the liquid level in the measured container rises or falls, so does the magnetic float within the main tube of the level meter. The permanent magnet inside the float transfers its position via magnetic coupling to the magnetic flaps indicator, flipping red and white flaps 180°—white turns red as the level rises and red turns white as it drops. The boundary between red and white indicates the actual liquid level inside the container, providing a clear visual indication of the level.

Buy

technology parameter

Structure Form	Insulated Jacketed Type, Lined Type, Standard Type	Inner Lining	F46, etc.
Measuring Cylinder Material	SUS304, SUS316, PP	Mounting Method	Side Mounted Type
Measuring Range	300-10000mm	Ambient Temperature	-25 ~ 60℃
Process Temperature	80℃, 120℃, 300℃	Applicable Pressure	1.0 MPa, 1.6 MPa, 4.0 MPa (Negotiable)
Accuracy	±10mm	Electrical Interface	M20×1.5 (Negotiable)
Output Mode	4~20mA Two-wire System, Relay	Protection Grade	IP65
Certification	Intrinsically Safe, Flameproof	Power Supply Voltage	DC 24V

Selection

Measurement Task
Operating Temperature

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Pressure Rating

A:0–1.6MPa; B:0–2.5MPa; C:0–4.0MPa; D:0–6.3MPa; E:0–10MPa;
Output Signal

A:4–20mA; B:Discrete signal; C:No Output;
Power Supply

A:24VDC; B:220VAC; C:Non-powered;
Process Connection Size

A:DN20; B:DN25; C:DN32; D:DN40; E:DN50; F:DN65; G:DN80; H:DN100; J:DN125; K:DN150; L:DN200; M:G1/2 thread; S:1/2 NPT thread; T:G1 thread; Y:G1½ thread; Z:G1¼ thread; X:Other;
Measuring Range

A:0-1000mm; B:0-5000mm; C:0-10000mm; D:0–15000mm; E:0-20000mm; F:0-30000mm; G:0-40000mm; H:0-50000mm; I:Other;
Corrosive Service

A:Yes; B:No;
