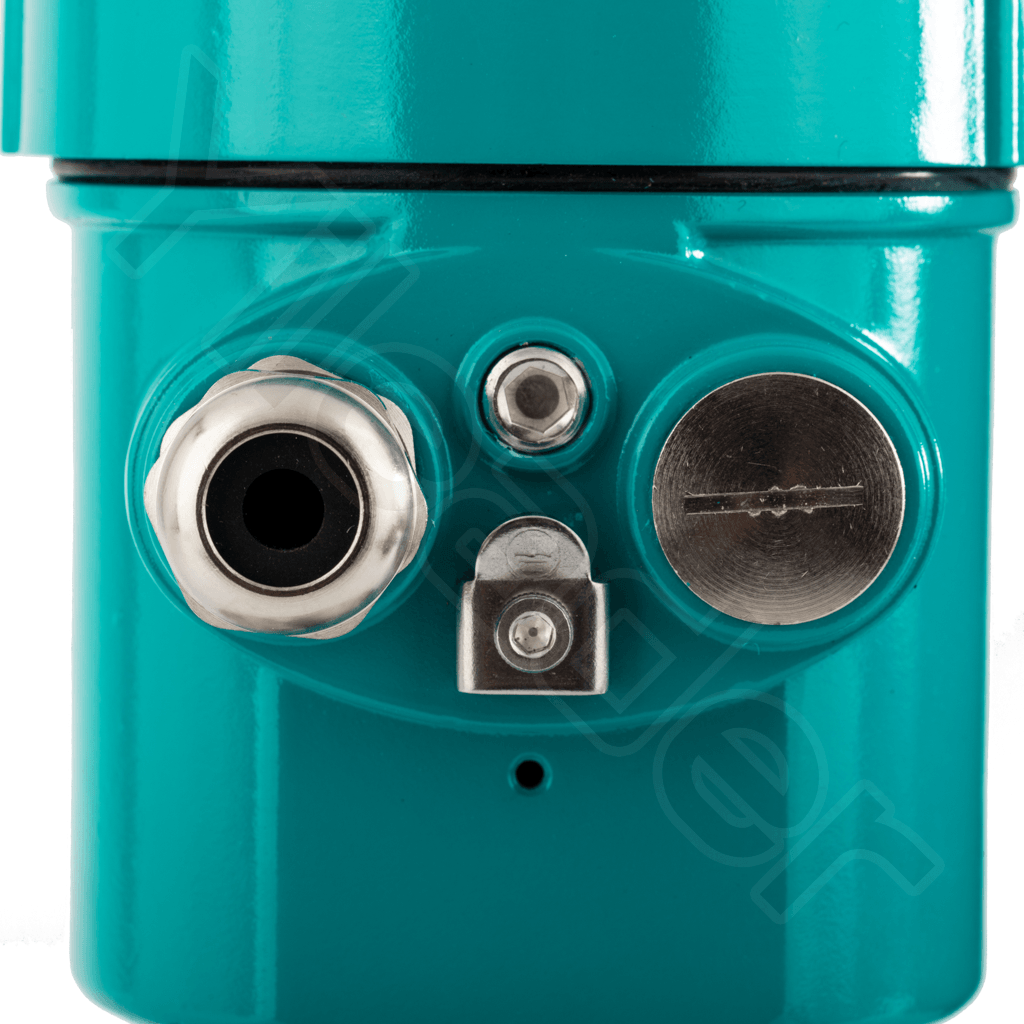

YK-A60-18

Absolute Pressure Transmitter

Absolute pressure transmitters transfer process pressure via isolation diaphragms and fill fluid on the high- and low-pressure sides to a central sensing diaphragm, which—acting as a taut elastic element—displaces proportionally with applied pressure; this displacement alters the capacitance between fixed electrode plates on both sides, and the resulting differential capacitance is precisely converted into standard current, voltage, or digital HART output signals for accurate pressure measurement and control.

Buy

technology parameter

Structure Form	Integrated Type	Mounting Method	Thread, Bracket
Housing Material	SUS304, SUS316, Cast Aluminum Alloy	Fastener Material	SCM435, SUS630, SUH660
Diaphragm Material	316L, Hastelloy C-276, Hastelloy C, Tantalum	Ambient Temperature	-25 ~ 60℃
Process Temperature	-25 ~ 100℃	Applicable Pressure	1-100kPa, 5-500kPa
Accuracy	±0.5%	Electrical Interface	M20×1.5 (Negotiable)
Output Mode	4~20mA, HART Protocol, RS485	Protection Grade	IP65, IP66
Certification	Intrinsically Safe, Flameproof	Power Supply Voltage	24VDC

Selection

Measurement Task
Temperature Range

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Span

A:-10–1kPa; B:0–5kPa; C:0–10kPa; D:0–50kPa; E:0–100kPa; F:0–1.6MPa; G:0–2.5MPa; H:0–3.2MPa; J:0–10MPa; Z:Customized;
Wetted Parts Material

A:316L; B:Hastelloy; C:Tantalum (TAN);
Output Signal

A:4–20mA;
Process Connection Size

A:DN20; B:DN25; C:DN32; D:DN40; E:DN50; F:DN65; G:DN80; H:DN100; V:M20×1.5; P:1/2NPT; S:G1/2; Z:Other;
Accuracy Class

A:0.075%F.S; B:0.1%F.S; C:0.25%F.S; D:0.5%F.S;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsically Safe;
Electrical Conduit Entry Size

A:M20×1.5; B:G1/2 NPT internal thread; C:1/2 NPT internal thread; D:Other;
