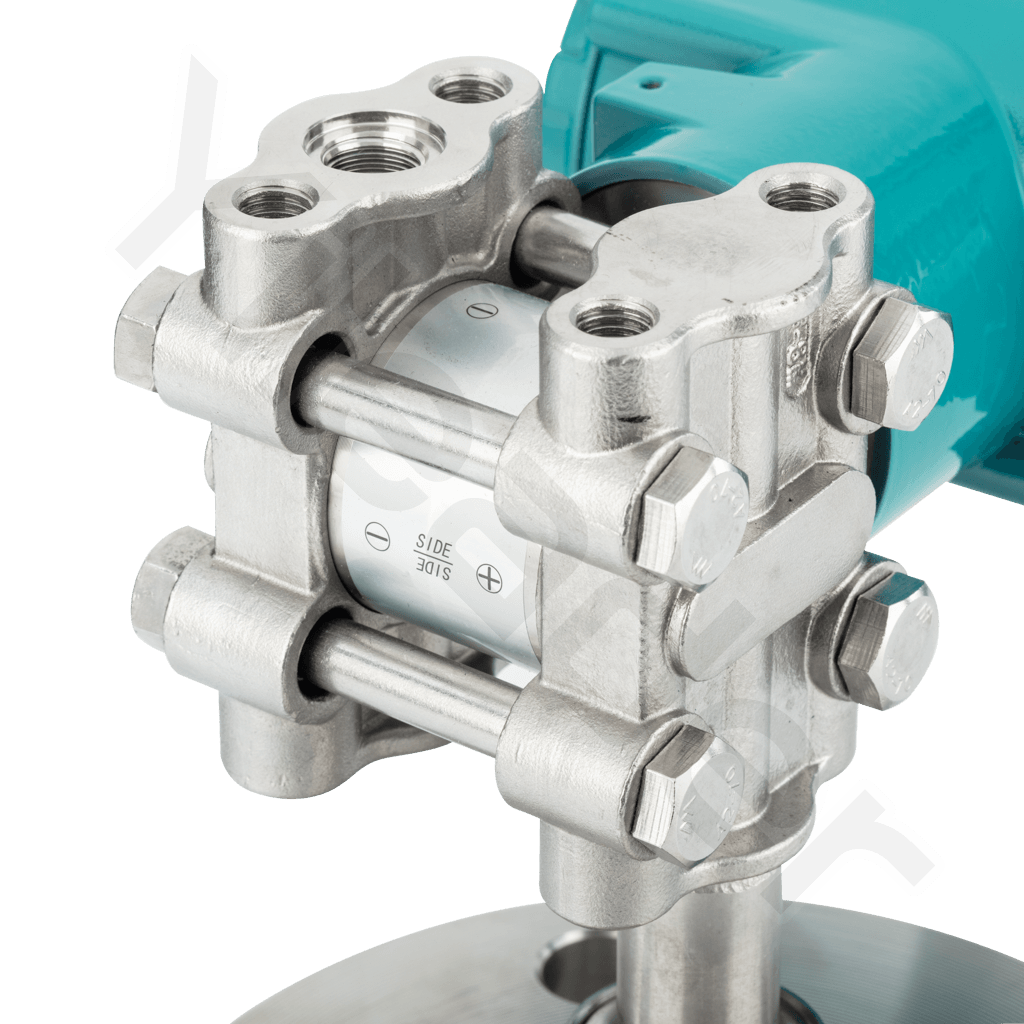

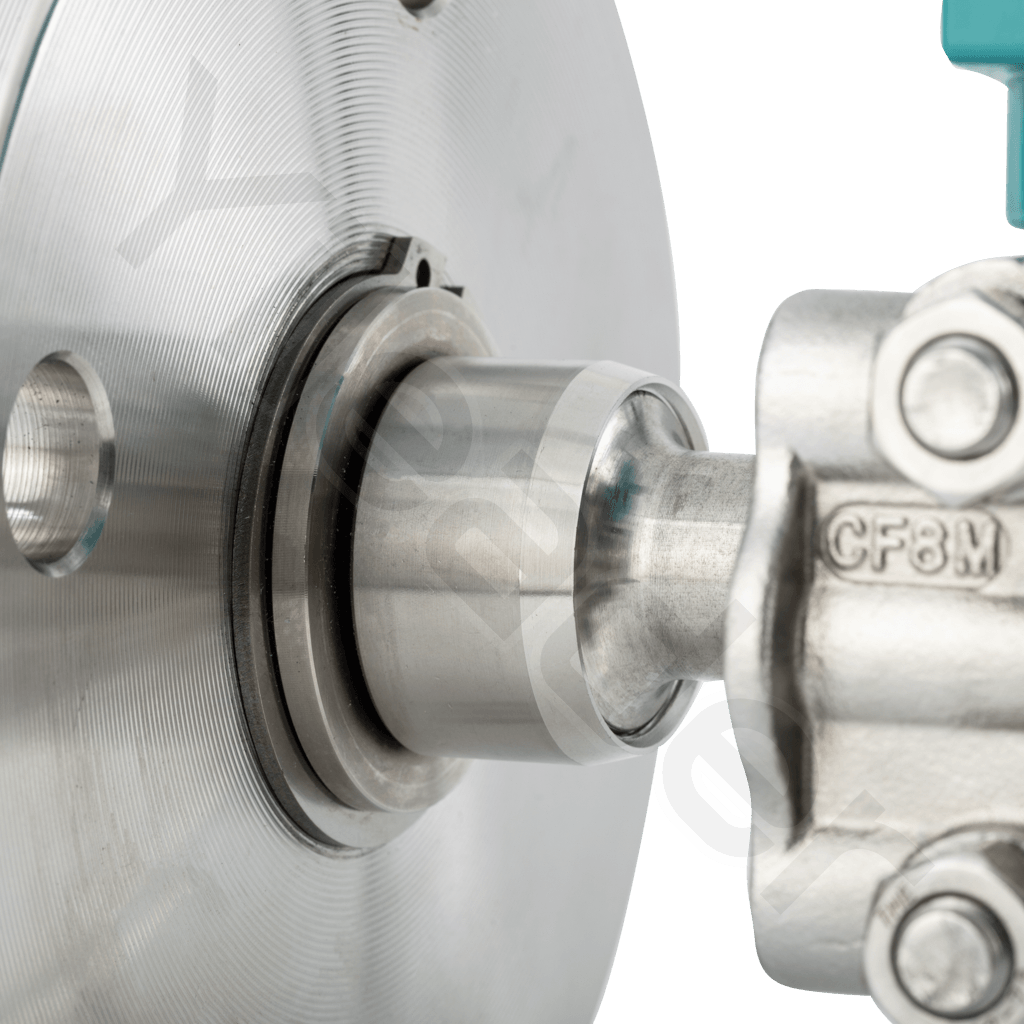

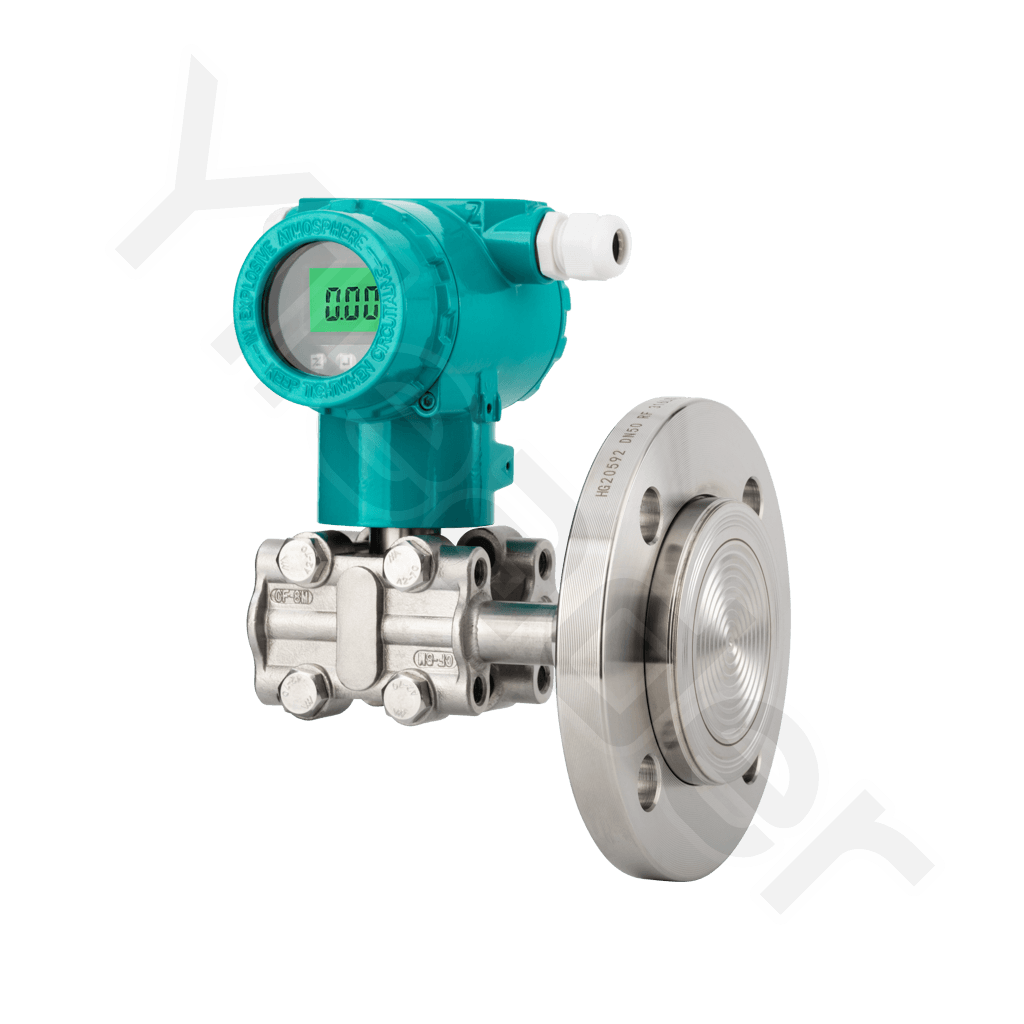

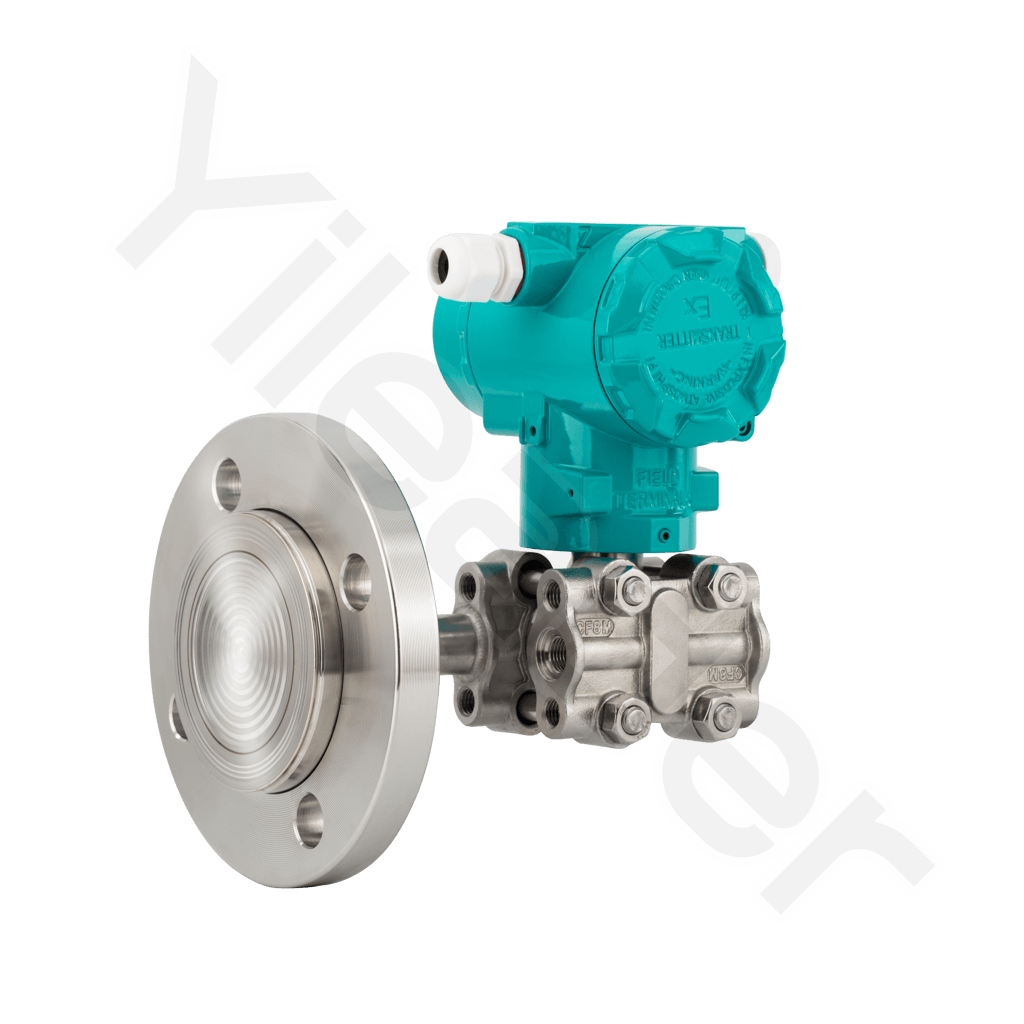

Single Flange Differential Pressure Transmitter

YK-A60-DF

Single Flange Differential Pressure Transmitter

In operation, a single-flange differential pressure transmitter transmits process pressure from both high- and low-pressure side isolation diaphragms through fill fluid to a central fill fluid chamber, which then conveys the differential pressure to the sensing diaphragm of a δ-cell sensor. This sensing diaphragm is a taut elastic element whose displacement varies proportionally with applied differential pressure (for GP gauge pressure transmitters, atmospheric pressure acts on the low-pressure side; for AP absolute pressure transmitters, the low side maintains a fixed reference pressure). Maximum diaphragm deflection is 0.004 inches (0.10 mm), and this displacement is linearly converted by capacitor plates and amplifier circuitry into a standard two-wire 4–20 mA DC current signal, voltage output, or digital HART signal.

Buy

technology parameter

Structure Type	Integrated Type	Mounting Method	Flanged Type
Housing Material	SUS304, SUS316, Cast Aluminum Alloy	Flange Material	SUS304, SUS316
Diaphragm Material	316L, Hastelloy C-276, Hastelloy C, Tantalum	Ambient Temperature	-25 ～ 70℃
Process Temperature	0-100℃	Measurement Range	0-100kPa 5-500kPa
Accuracy	±0.075%	Electrical Connection	M20×1.5 (customizable)
Output Signal	4～20mA, HART Protocol, RS485	Ingress Protection Rating	IP65, IP66
Certifications	Intrinsic Safety, Explosion-proof	Power Supply	24VDC

Selection

Measurement Task
Temperature Range

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Span

A:-10–1kPa; B:0–5kPa; C:0–10kPa; D:0–50kPa; E:0–100kPa; F:0–1.6MPa; G:0–2.5MPa; H:0–3.2MPa; J:0–10MPa; Z:Customized;
Wetted Parts Material

A:316L; B:Hastelloy; C:Tantalum (TAN);
Output Signal

A:4–20mA;
Process Connection Size

A:DN20; B:DN25; C:DN32; D:DN40; E:DN50; F:DN65; G:DN80; H:DN100; V:M20×1.5; P:1/2NPT; S:G1/2; Z:Other;
Accuracy Class

A:0.075%F.S; B:0.1%F.S; C:0.25%F.S; D:0.5%F.S;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsically Safe;
Electrical Conduit Entry Size

A:M20×1.5; B:G1/2 NPT internal thread; C:1/2 NPT internal thread; D:Other;
