YK-WNF-Q

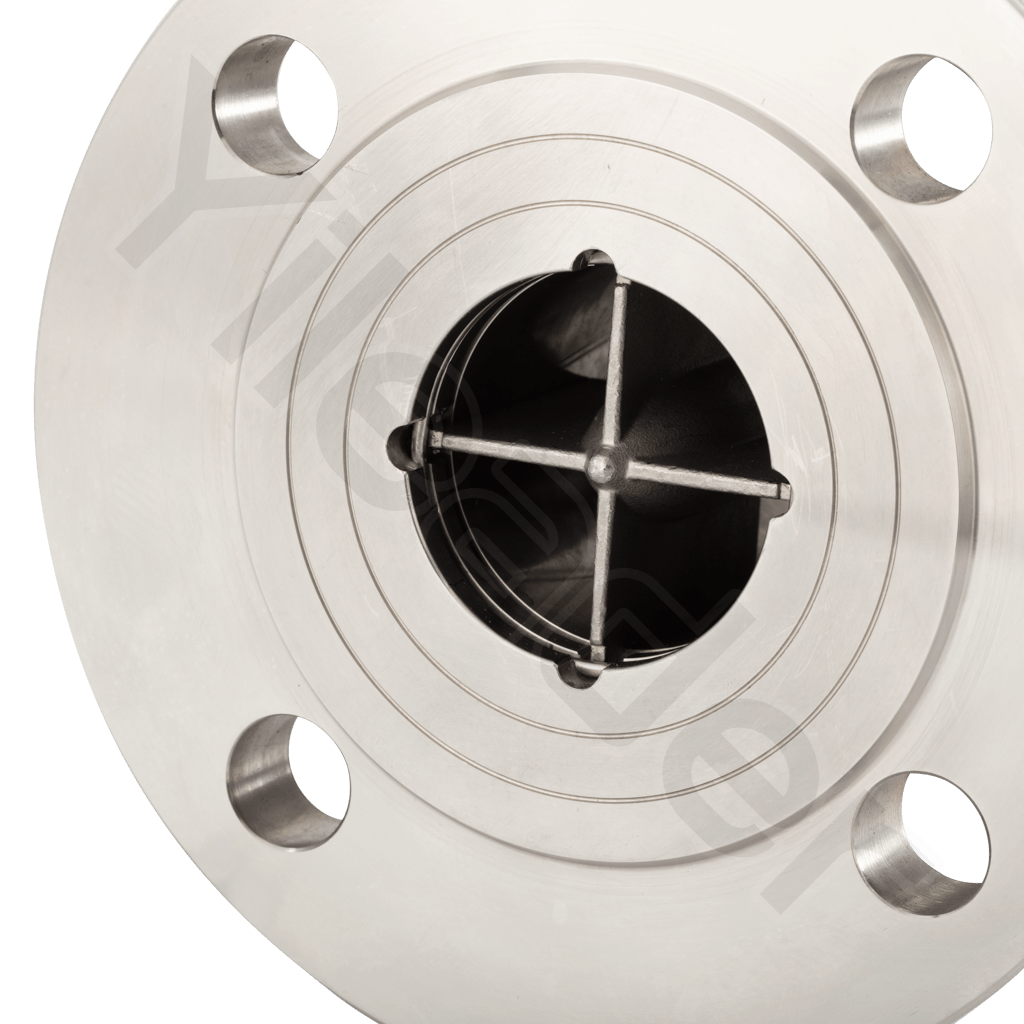

Gas Turbine Flow Meter

The intelligent gas turbine flow meter is a new generation of high-precision, high-reliability gas meter developed by integrating advanced domestic and international flow measurement technologies and optimized based on principles of gas dynamics, fluid mechanics, and electromagnetism. It offers excellent performance in both low-pressure and high-pressure gas metering, multiple signal output options, and low sensitivity to flow disturbances. It is widely used for measuring natural gas, coal-derived gas, liquefied petroleum gas, light hydrocarbon gas, and similar gases. This turbine flow meter lacks local display capability and transmits flow signals only as pulse outputs. It is cost-effective, highly integrated, compact, and especially suitable for use with secondary indicators, PLCs, DCS, and other computerized control systems.

Buy

technology parameter

Structure Type	Integral type	Connection Method	Screw type, Flange type, Clamp type
Housing Material	SUS304, SUS316, Aluminum Alloy	Sensor Process	Standard type, Wear-resistant type, Corrosion-resistant type
Impeller Material	316L, Graphite, PTFE, Tungsten Carbide	Ambient Temperature	-25 ～ 80℃
Process Temperature	-20 ～ 150℃	Applicable Pressure	0～40 MPa (can be agreed upon)
Accuracy	±1.0%	Electrical Connection	M20×1.5 (can be agreed upon)
Output Method	Pulse output, 4～20mA, HART protocol, RS485,	Ingress Protection Rating	IP65, IP66,
Certification	Intrinsically safe, Flameproof	Power Supply Voltage	24VDC, Battery

Selection

Measurement Task
Nominal Diameter (DN)

A:DN15; B:DN20; C:DN25; D:DN32; E:DN40; F:DN65; G:DN80; H:DN100; I:DN125; J:DN150; K:DN200; L:DN250; M:DN300; N:DN350; O:DN400; P:DN450; Q:DN500; R:DN600; S:DN700; T:DN800; U:DN900; V:DN1000; W:DN1100; X:DN1200; Y:DN1300; Z:DN1400; DI:Others;
Power Supply

A:24VDC; B:220VAC; C:Non-powered;
Operating Temperature

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Pressure Rating

A:0–1.6MPa; B:0–2.5MPa; C:0–4.0MPa; D:0–6.3MPa; E:0–10MPa;
Output Signal

A:4–20mA; B:Pulse; C:Switch Signal; D:No Output;
Installation Type

A:Clamp-on; B:Flanged; C:Insertion type; D:Welded-connection;
Converter Type

A:Integral; B:Remote;
Protection Rating (IP Rating)

A:IP65; B:IP66; C:IP67; D:IP68;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsic Safety;
Grounding Ring or Grounding Electrode

A:Yes; B:No;
