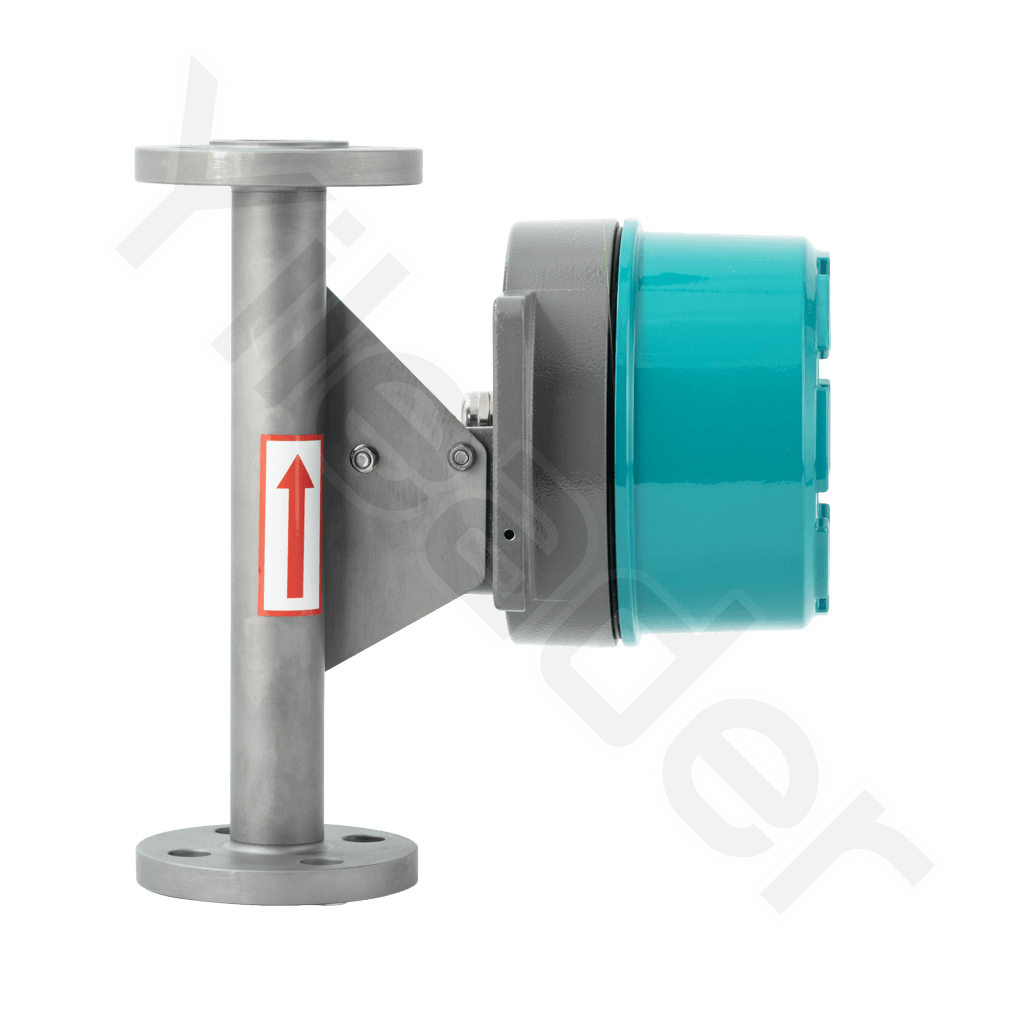

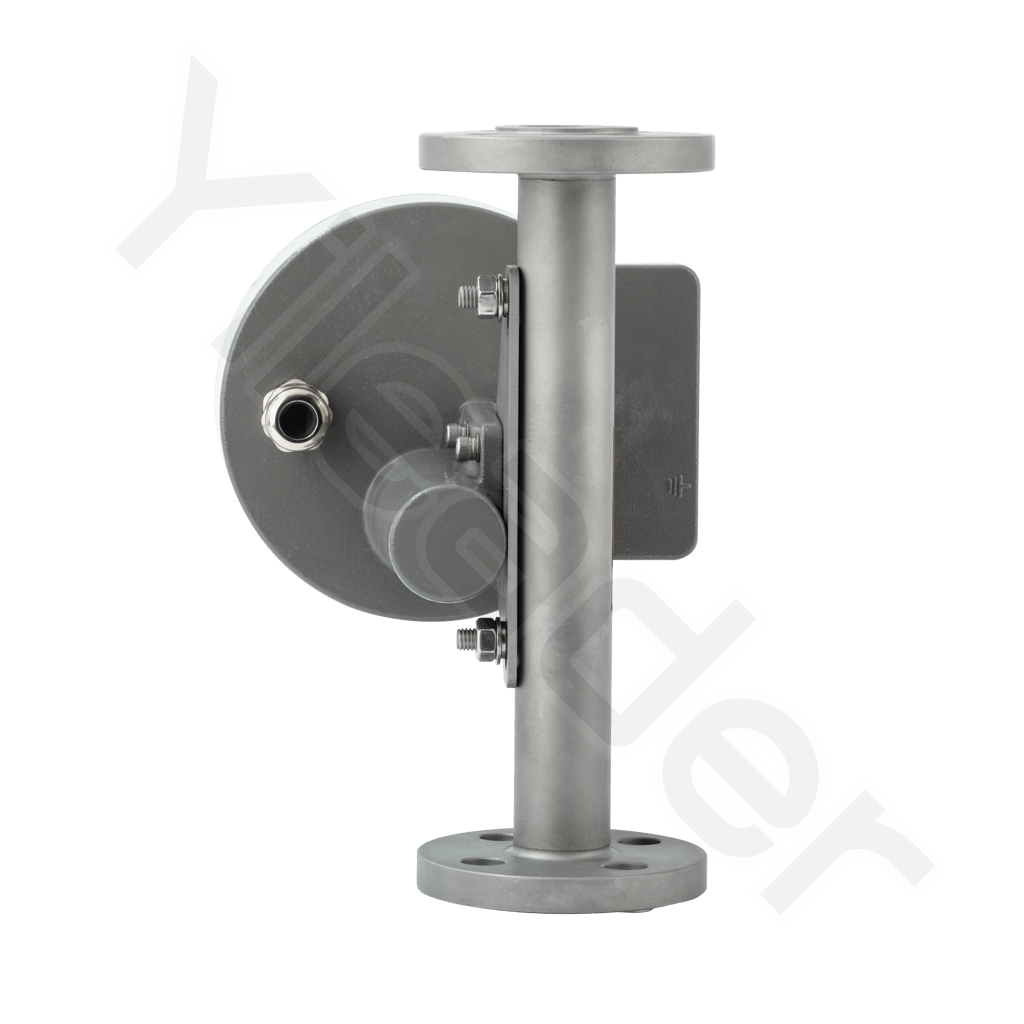

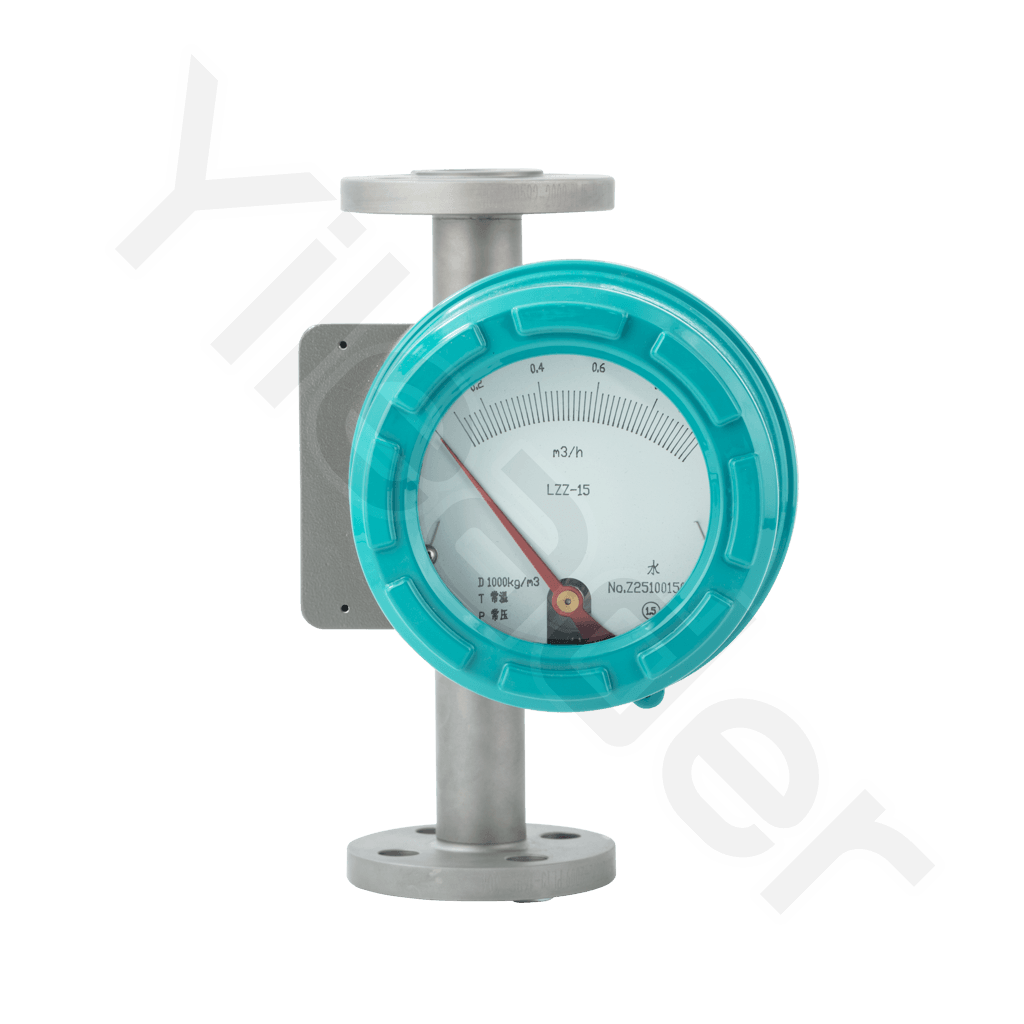

YK-JSF

Metal Tube Rotameter

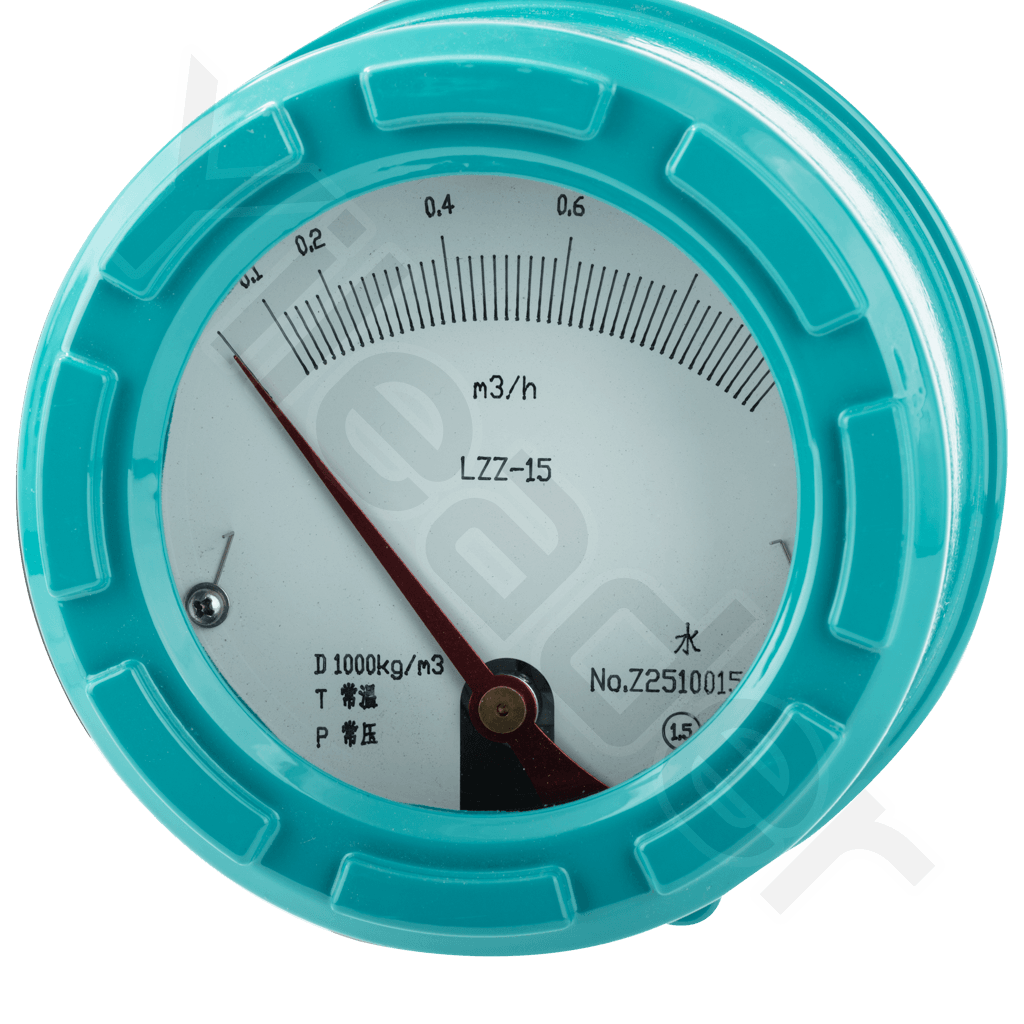

The metal tube variable area (rotameter) flow meter operates on the principle of variable annular area: within a vertically oriented measuring tube, as fluid flows upward, it lifts a float until the upward force balances the float’s weight. At this equilibrium position, the annular gap between the float and the tapered tube (or orifice plate) remains constant, and this gap area is proportional to the float’s height, which thus indicates flow rate. As the float moves, its position is transmitted externally via magnetic coupling to drive a pointer on the indicator; a cam plate ensures linear scale indication. The electric remote transmission version simultaneously provides local pointer indication and converts the flow value into a precise standard signal (0–10 mA or 4–20 mA) via an angular displacement sensor and electronic transmitter circuit.

Buy

technology parameter

Structure Type	Integral type	Connection Method	Flange type, Screw type
Housing Material	Carbon steel, SUS304, SUS316L	Lining Material	PTFE
Wetted Material	304, 316L, Hastelloy C, Titanium,	Ambient Temperature	-40 ～ 60℃
Process Temperature	-20～ 220℃	Applicable Pressure	0～4.0MPa (can be agreed upon)
Accuracy	±1.0%	Electrical Connection	M20×1.5 (can be agreed upon)
Output Method	4～20mA, RS485, Relay	Ingress Protection Rating	IP65
Certification	Intrinsically safe, Flameproof	Power Supply Voltage	220VAC, 24VDC

Selection

Measurement Task
Nominal Diameter (DN)

A:DN15; B:DN20; C:DN25; D:DN32; E:DN40; F:DN65; G:DN80; H:DN100; I:DN125; J:DN150; K:DN200; L:DN250; M:DN300; N:DN350; O:DN400; P:DN450; Q:DN500; R:DN600; S:DN700; T:DN800; U:DN900; V:DN1000; W:DN1100; X:DN1200; Y:DN1300; Z:DN1400; DI:Others;
Power Supply

A:24VDC; B:220VAC; C:Non-powered;
Operating Temperature

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Pressure Rating

A:0–1.6MPa; B:0–2.5MPa; C:0–4.0MPa; D:0–6.3MPa; E:0–10MPa;
Output Signal

A:4–20mA; B:Pulse; C:Switch Signal; D:No Output;
Installation Type

A:Clamp-on; B:Flanged; C:Insertion type; D:Welded-connection;
Converter Type

A:Integral; B:Remote;
Protection Rating (IP Rating)

A:IP65; B:IP66; C:IP67; D:IP68;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsic Safety;
Grounding Ring or Grounding Electrode

A:Yes; B:No;
