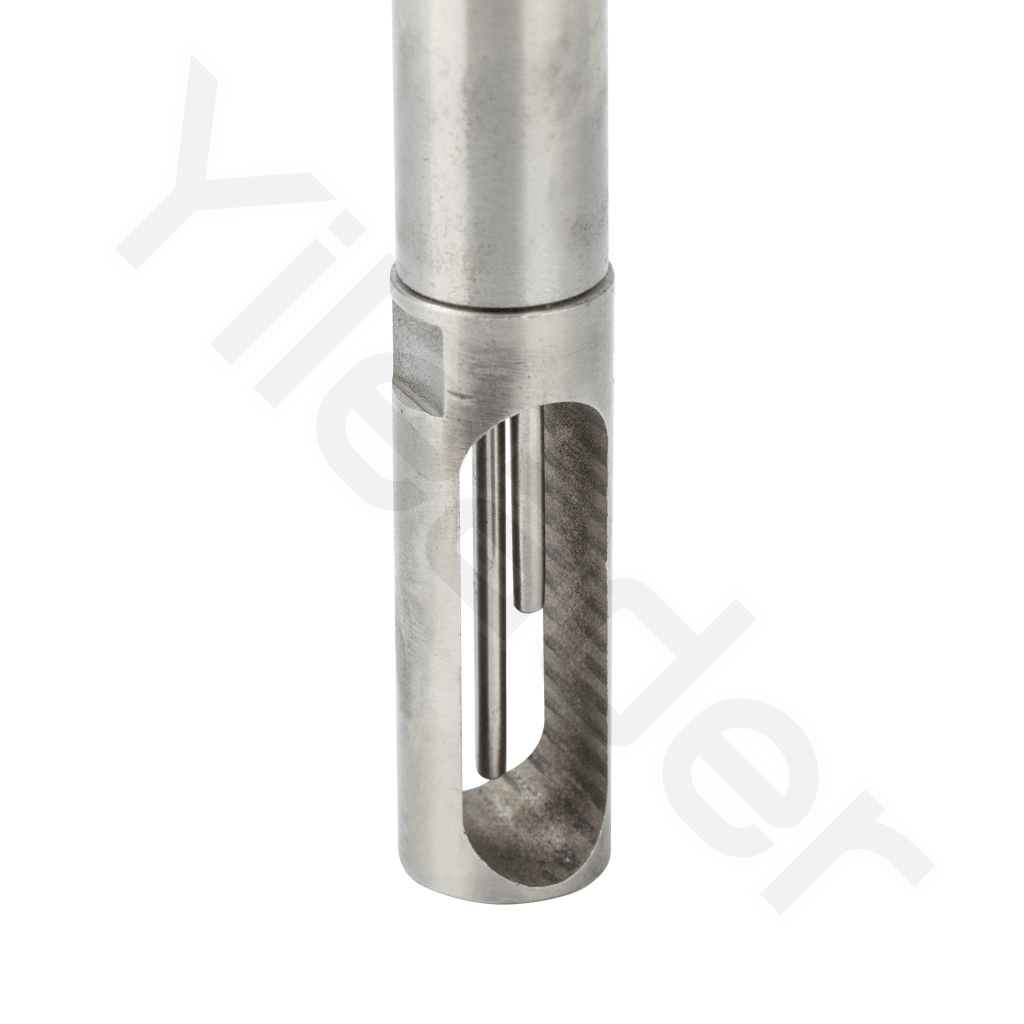

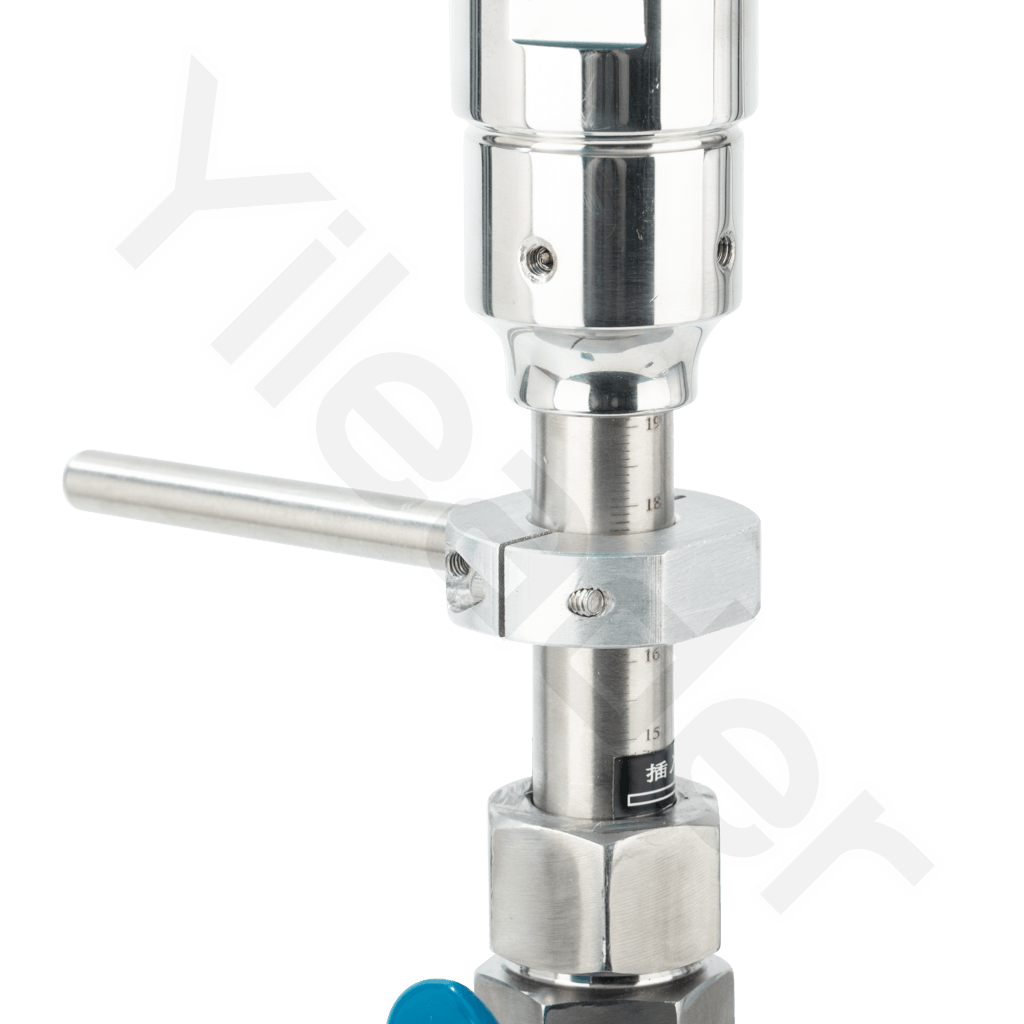

YK-84RF

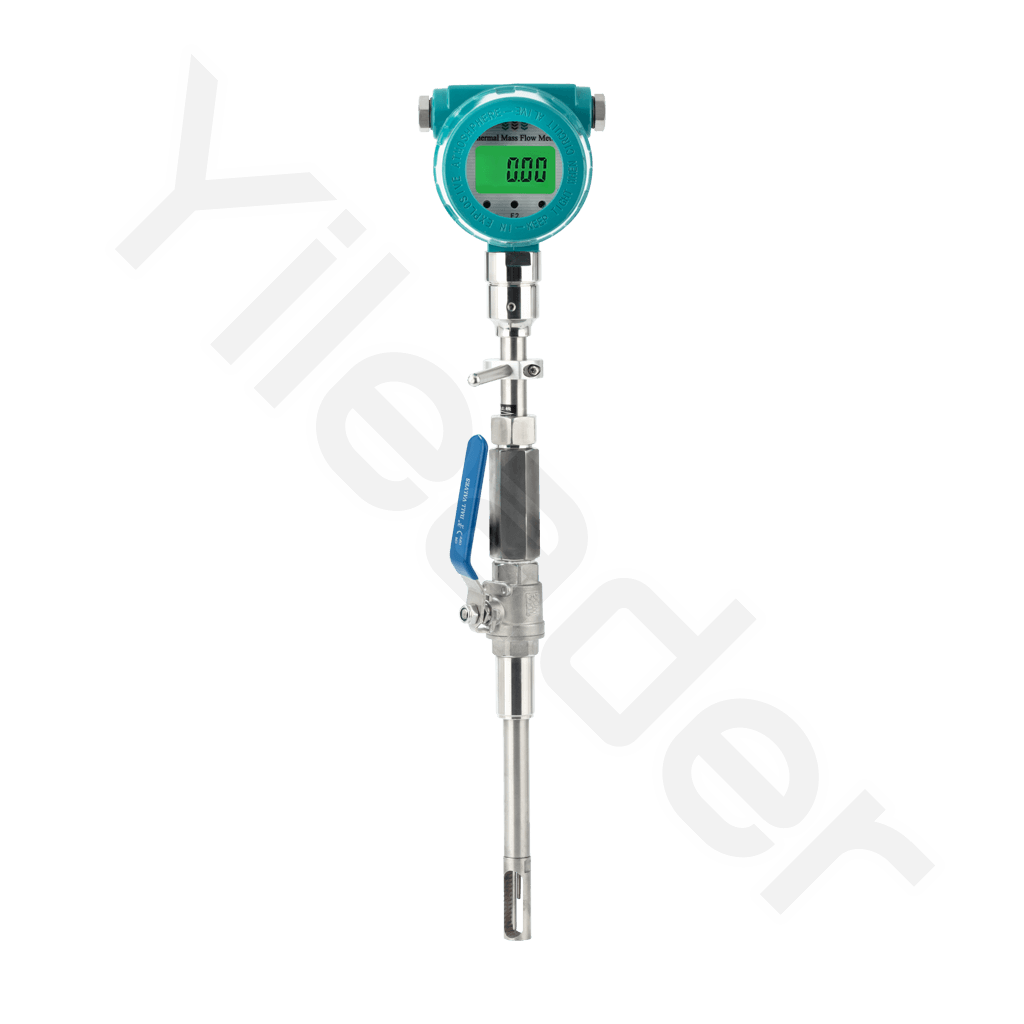

Thermal Mass Flow Meter

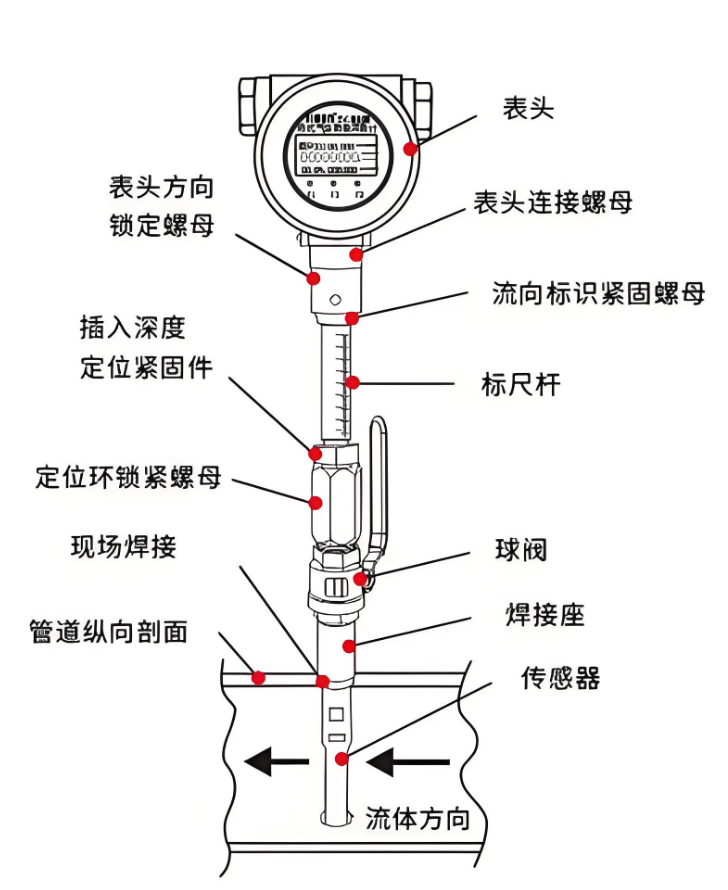

Thermal flow meters are direct mass flow meters capable of measuring mass flow rates. When the fluid is stationary, the heating element within the pipeline causes symmetric temperature distribution upstream and downstream, with both elements indicating equal temperatures. As the medium flows, the downstream temperature becomes higher than the upstream one. With increased flow velocity, the temperature difference increases until it reaches a certain threshold, after which the temperature difference starts to decrease as velocity continues to increase. For smaller flows, the characteristic of increasing temperature difference is utilized, whereas for larger flows, the decreasing temperature difference is used to ensure the uniqueness of the meter's readings. The thermal conductivity measurement method measures flow based on the relationship between heat dissipation from the heating element and flow velocity.

Buy

technology parameter

Structure Form	Integrated, Remote Mount, Insertion Type, In-line Type	Connection Method	Compression Fitting, Screw Type, Flange Type, Insertion Type
Shell Material	Aluminum Alloy, 304	Probe Rod Material	304, 316L, Hastelloy
Sensor Material	304, 316L, Hastelloy, Titanium	Ambient Temperature	-25 ～ 60℃
Process Temperature	-20 ～ 300℃	Applicable Pressure	0 ～ 3.0 MPa (can be agreed upon)
Accuracy	±1.5%	Electrical Interface	M20×1.5 (can be agreed upon)
Output Method	4～20mA, HART Protocol, RS485	Protection Class	IP65, IP66, IP67
Certification	Intrinsic Safety, Flameproof	Power Voltage	220VAC, 24VDC


Selection

Measurement Task
Nominal Diameter (DN)

A:DN15; B:DN20; C:DN25; D:DN32; E:DN40; F:DN65; G:DN80; H:DN100; I:DN125; J:DN150; K:DN200; L:DN250; M:DN300; N:DN350; O:DN400; P:DN450; Q:DN500; R:DN600; S:DN700; T:DN800; U:DN900; V:DN1000; W:DN1100; X:DN1200; Y:DN1300; Z:DN1400; DI:Others;
Power Supply

A:24VDC; B:220VAC; C:Non-powered;
Operating Temperature

A:≤80℃; B:≤120℃; C:≤200℃; D:≤300℃; E:≤400℃;
Pressure Rating

A:0–1.6MPa; B:0–2.5MPa; C:0–4.0MPa; D:0–6.3MPa; E:0–10MPa;
Output Signal

A:4–20mA; B:Pulse; C:Switch Signal; D:No Output;
Installation Type

A:Clamp-on; B:Flanged; C:Insertion type; D:Welded-connection;
Converter Type

A:Integral; B:Remote;
Protection Rating (IP Rating)

A:IP65; B:IP66; C:IP67; D:IP68;
Explosion-Proof Rating

A:Standard; B:Explosion-proof; C:Intrinsic Safety;
Grounding Ring or Grounding Electrode

A:Yes; B:No;
